Samsung RH9000H FSR Food Showcase Water Filter Replacement

Written By: Quinton Nguyen
  • Comments: 0
Samsung RH9000H FSR Food Showcase Water Filter Replacement

Difficulty

Easy

Steps

7

Time Required

7 - 10 minutes

Introduction

Replacing your water filter is a necessity to ensure you have clean water. This guide will direct you on how to replace the water filter in a Samsung RH9000H FSR Foodshowcase 765 L refrigerator. The only part you would need is a HAF-CIN water filter. Once the red filter symbol is gone, you will know that the replacement is complete. It is required to change the water filter every six months.

  1. SXxRpFum1Hs2hRNH

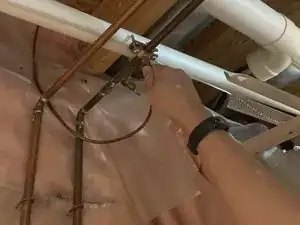

    • Twist the valve to turn the water supply off for the fridge.

  2. LvBUCZRNu6AqeDMo
    LvBUCZRNu6AqeDMo
    Gca5YDWBGFlnFUtD

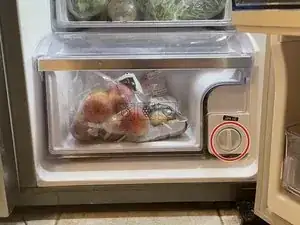

    • Open the refrigerator door and locate the filter at the bottom right corner of the fridge.

  3. v2jQsk5BD2WrDiaS
    v2jQsk5BD2WrDiaS
    Fl1LkAqiW6cPww4p

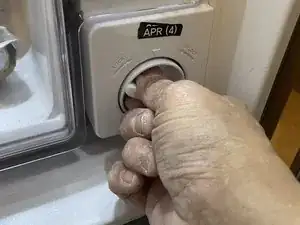

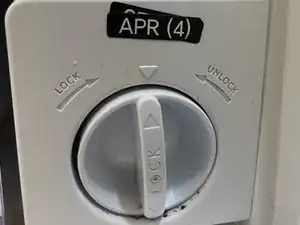

    • Twist the handle counterclockwise to the "Unlock" position.

  4. JHQ6TYgwwXkesVWv
    JHQ6TYgwwXkesVWv
    ekCUUHduSL2htHx2

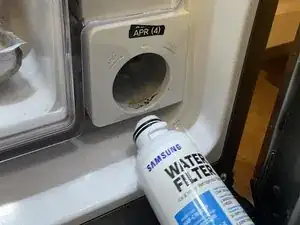

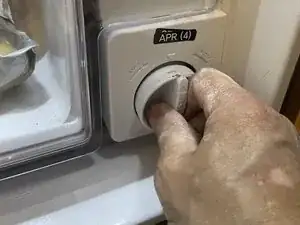

    • Firmly pull the old water filter straight out to remove it.

  5. BrvdmtVgo5mXaCxT
    BrvdmtVgo5mXaCxT
    xgqOAJ4KZIAhdyMs
    q2Y6dtYDkJiZ1nwa

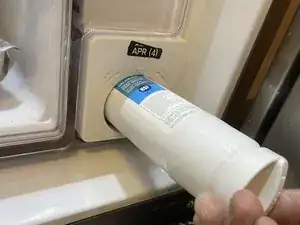

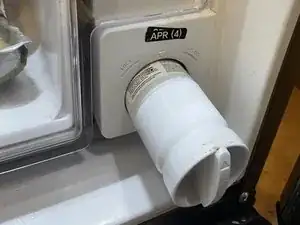

    • Insert the new filter in place of the old one.

    • Twist the handle clockwise to lock it into place at the "Lock" position.

  6. DajGCiGLoSEFCYKm

    • Turn on the water supply for the fridge.

    • Dispense up to 4 gallons of water to get rid of any impurities in the water.

  7. ie5hENCLIytRIppD

    • Hold the "Reset" button for 3 seconds to reset the water filter.

    • Once the red filter symbol disappears, the filter has reset for six months.

Conclusion

To reassemble your device, follow these instructions in reverse order.
