Introduction
In this guide you will take the following steps to replace the motherboard in the Samsung PL200.
Tools
-

                  -

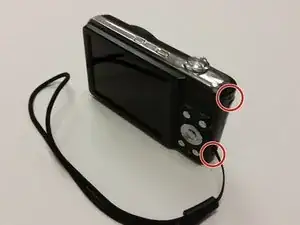

            Remove the two 3mm black external scews from he camera's side using the #000 Philips Screwdriver.
-
            Remove the five 3mm silver external screws from the camera's side and bottom using the #000 Philips Screwdriver

-

-

                  -

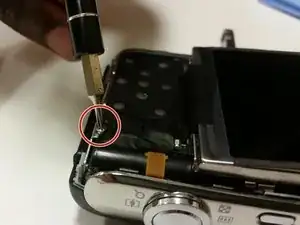

            Flip the LCD screen forward and remove the two 3mm screws beneath it using the #000 Phillips Screwdriver.
-

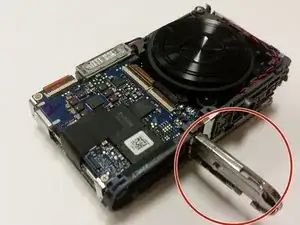

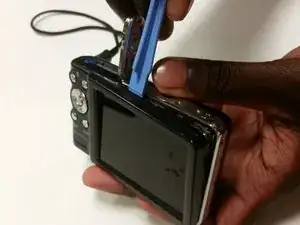

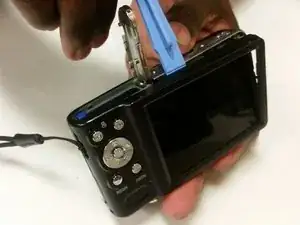

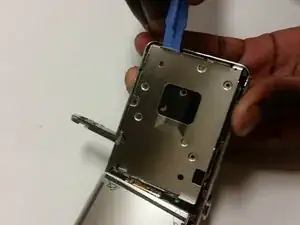

            Remove the metal brace using the Plastic Opening Tool.

-

-

                  -
            Lift the black latch where the screen plugs into the motherboard and pull the cord to remove the screen
-

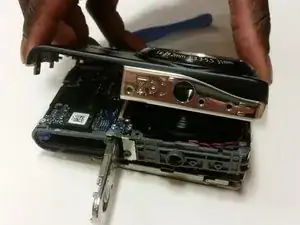

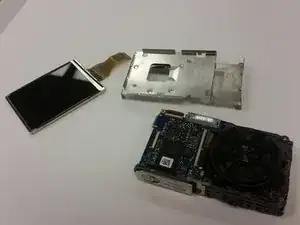

            Separate the screen and the metal brace from the camera body.

-

-

                  -

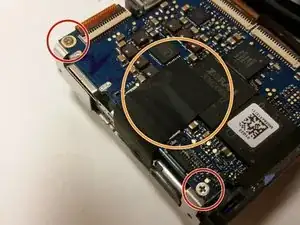

            Using the #000 Phillips Screwdriver, remove the two 3mm screws holding the motherboard in place.
-
            There may be tape still on the motherboard, if so, remove it.

-

-

                  -

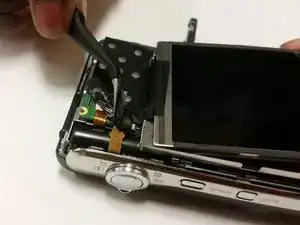

            Use the Tweezers to remove the tape from bottom of the camera
-

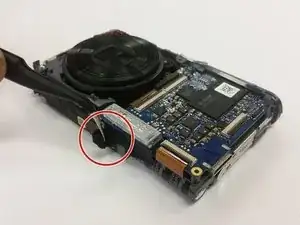

            Use the Tweezers to disconnect the lens unit cord that is at the bottom of the camera from the motherboard.
-

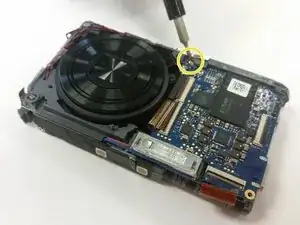

            Remove the last 3mm screw that holds the motherboard in place.

-

-

                  -

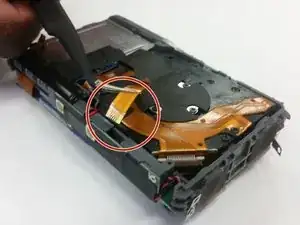

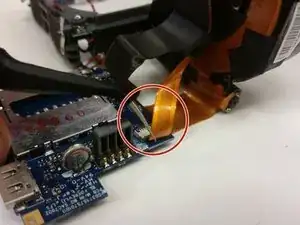

            Use the Tweezers to unplug the small lens unit cord from the camera frame on the back side of the camera.
-

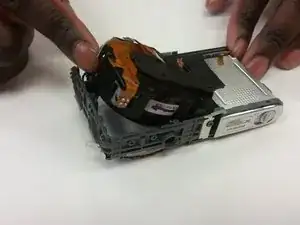

            Gently lift the lens unit from the frame.
-

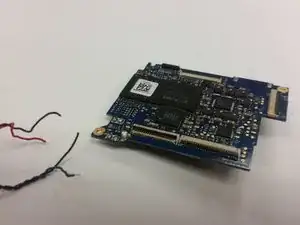

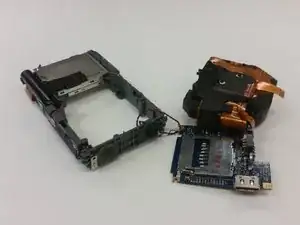

            Separate the lens unit, motherboard, and camera.

-

-

                  -

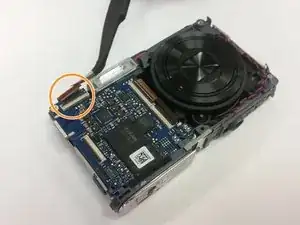

            Use the Tweezers to remove the small cord from motherboard.
-

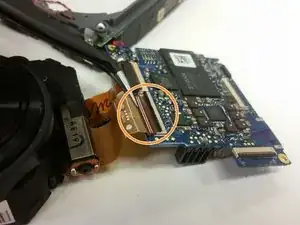

            Use the Tweezers to remove the first large lens unit cord from the motherboard.
-
            Use the Tweezers to remove the second large lens unit cord from the motherboard.

-

To reassemble your device, follow these instructions in reverse order.
