Introduction
Navigation buttons are used to operate the camera and its various settings and features.
Tools
-

                  -
            Use the Phillips #00 screwdriver to remove one 6.4 mm screw in the center of the dial.
-
            Remove the dial by lifting upward with your fingers.

-

-

                  -
            Use the Phillips #00 screwdriver to remove the four 5.5 mm screws surrounding the viewfinder.
-
            Use your fingers to lift the plastic viewfinder cover upward.

-

-

                  -
            Use the Phillips #00 screwdriver to remove the two 5.5 mm screws from the right side of the camera above the SD card port.

-

-

                  -
            Use the Phillips #00 screwdriver to remove one 5.5 mm screw on the left, above the HDMI port.

-

-

                  -
            Use the Phillips #00 screwdriver to remove the five 5.5 mm screws from the bottom, near the battery compartment.
-
            Use the Phillips #00 screwdriver to remove one 3.8 mm screw from the bottom of the hand grip, below the battery compartmen.

-

-

                  -

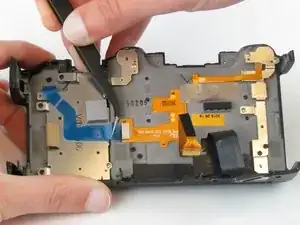

            Use the Phillips #00 screwdriver to remove the six screws (three silver 3.5 mm screws and three black 4.2 mm screws).

-

-

                  -

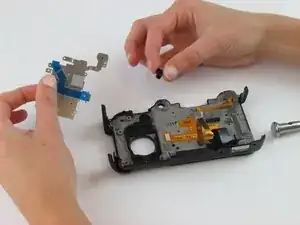

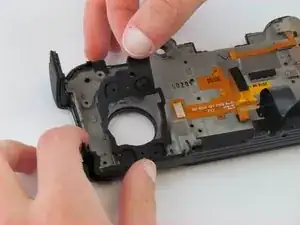

            Use your fingers to remove the metal piece with the blue ribbon cable and the rubber buttons lying underneath.

-

To reassemble your device, follow these instructions in reverse order.
