Samsung L100 Setting Knob Spring

Written By: andyhe
  • Comments: 0
Samsung L100 Setting Knob Spring

Difficulty

Moderate

Steps

13

Time Required

15 minutes

Introduction

A guide to help replace the spring inside of the setting knob on top of the camera.

  1. q2soNFxUUC5lb1ky
    q2soNFxUUC5lb1ky
    Wy6lMmSi2wEHgBVZ
    GhwphVxvUTbnKXTm

    • Remove the six external screws from the camera using a Phillips #0 screwdriver.

    • After the screws has been removed, the bottom of the back half of the external case should be loosened from the camera.

    • Be careful, make sure you don't lose the screws.

  2. ppiECWcCsQqRWXPL
    ppiECWcCsQqRWXPL
    rqmZdhu32oQEhsKx

    • Open the battery cover that's located on the bottom right side of the camera and carefully remove the battery.

  3. 3TYGCgfHBJdhmRZ2
    3TYGCgfHBJdhmRZ2
    SQgNiTJKCv1PIOdD
    elgM4k3jmLnRlNBT

    • Slide your fingernail or a plastic spudger in the groove from the bottom to the top right side of the camera.

  4. es12lcCoBWSoRkXv

    • Carefully squeeze the top right corner of the camera and pry off the external cover.

    • If you hear a "cracking" sound. This is normal.

    • Continue to pull the external cover and it will come off cleanly.

    • Be cautious of the flash capacitor. It carries an electrical charge, that may give you an unpleasant shock.

  5. YFXwYPTkhADg5q5B

    • Carefully pull off the back cover, parts behind the back of the case might fall out.

  6. Li1wBOyceGULKFvE

    • Remove the screws holding the circuit board.

    • After you remove the screws, carefully remove the circuit board.

  7. DMaAY2mI6Nepream
    DMaAY2mI6Nepream
    Pu1VP1kiDNFEPB4m

    • Remove the front cover, it comes off easily.

    • Buttons might fall out when you remove the front cover.

  8. fKTvLMiKYJevigHP

    • Face camera towards you.

    • Remove the two screws from circuit board on the left side of the lens.

  9. iXcsICXC1GL5fSvN

    • Carefully hold up the circuit board, while it's still connected to the camera.

    • Remove all five screws that's on top of the camera.

  10. nrctAcYnxlZ6Z4UC
    nrctAcYnxlZ6Z4UC
    436eKecKWUEXJPks
    fIiwJoirRHPiKJPR

    • Carefully push up the top of the circuit board.

    • Pull up flash circuit board from top of camera.

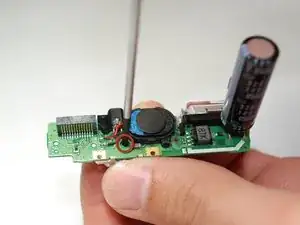

  11. JPZU5WAvjwlEm3As

    • Face the bottom of the Flash Circuit board towards you.

    • Remove the one screw that's located on the left side of the lens.

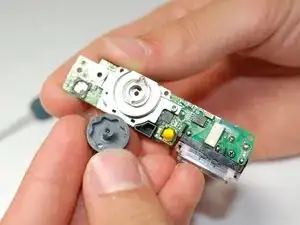

  12. IiEc2ApnDikYbJMT

    • Take the flash circuit board and turn it over.

    • Remove the plastic setting knob.

    • Make sure to keep copper spring inside of the slot.

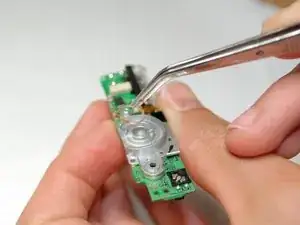

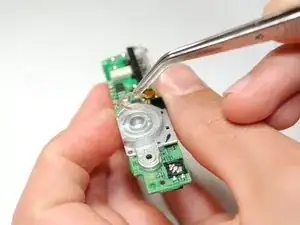

  13. rgVprFpCKn3BAKiU
    rgVprFpCKn3BAKiU
    iPHdQ3vDSXykOvAp
    n1wV3eWar4UqISfn

    • Take out and replace the Setting Knob Spring with tweezers.

Conclusion

To reassemble your device, follow these instructions in reverse order.
