Samsung HMX-F90 Record Button Replacement

Written By: Amir Harb
  • Comments: 0
Samsung HMX-F90 Record Button Replacement

Difficulty

Moderate

Steps

6

Time Required

15 - 20 minutes

Introduction

After several times of using buttons, they can become stuck or faulty. This guide can be used to loosen or replace the record button.

  1. rfPDbBRhK1RiDmJj
    rfPDbBRhK1RiDmJj
    yTFBgvuVfaiEXSos
    IdENGcRRCCLkS2DI

    • Pull the release tab away from the battery.

    • Slide the battery towards the release tab and then pull the battery away from the camcorder.

  2. CLDVk2hawBBno4i2
    CLDVk2hawBBno4i2
    JCQgMHUCDYNKwEnd

    • Rotate the camcorder so that the strap side is facing you.

    • Locate and remove the three 4.5mm Phillips #00 screws around the hand strap.

  3. yIVHqAIRQiFvPuVM
    yIVHqAIRQiFvPuVM
    JbxpJBhCQyUyUyw3

    • Rotate the camcorder so that the battery slot is facing you.

    • Located in the top left corner of the battery slot, remove the 4.5mm Phillips #00 screw.

  4. vhy3ksxoJbIgDMNn
    vhy3ksxoJbIgDMNn
    P44vL25JVSF4yrZ1

    • Rotate the camcorder so you are looking at the bottom of the camcorder.

    • Locate and remove the last three 4.5mm Phillips #00 screws.

  5. HEcndyYPILTuNkaB
    HEcndyYPILTuNkaB
    tXwvv6LvlwbnBGmO
    xnMxnNF22ipmVW1r

    • With both hands, pull the side strap apart from the rest of the camcorder.

  6. pDUGI5dPDuGdDSOV
    pDUGI5dPDuGdDSOV
    KagFxHsIBsXwVdF2
    LGK44PmD4krTqwGu

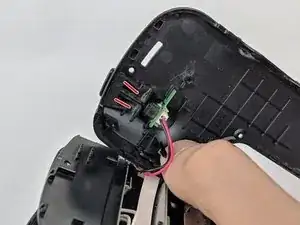

    • Locate plastic clips of the record button.

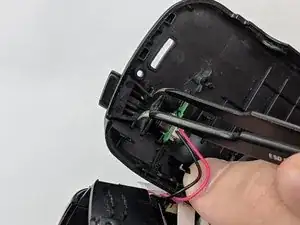

    • With tweezers squeeze together the two plastic clips and push the button out.

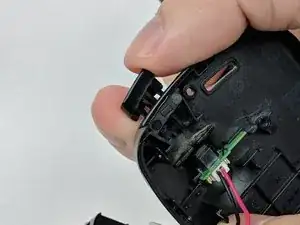

    • Wiggle and pull the record button to remove completely.

Conclusion

To reassemble your device, follow these instructions in reverse order.
