Samsung HMX-F90 LCD Screen Replacement

Written By: Amir Harb
  • Comments: 1
Samsung HMX-F90 LCD Screen Replacement

Difficulty

Difficult

Steps

6

Time Required

30 - 45 minutes

Introduction

Cracked or faulty LCD screens can make the HMX-F90 difficult to use. This guide can be used to replace the flip-out LCD screen.

  1. CSjMOTCdPHF3pxYN
    CSjMOTCdPHF3pxYN
    yEQRaEaDTS5fBB6h

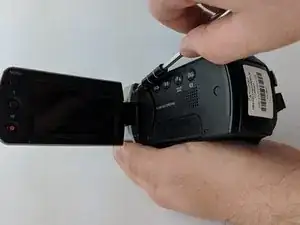

    • Rotate the camcorder so that back is facing you. Then flip open the LCD screen.

    • Locate and remove the 4.5mm Phillips #00 screws in the LCD screen base.

  2. Ek3VK2pZNNbIagaN
    Ek3VK2pZNNbIagaN
    jjFuBMaQrlSNQEBn

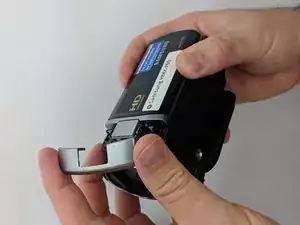

    • Close the LCD screen. Then lift the silver base away from the camcorder.

  3. HhjDAq5bmAxriMyU
    HhjDAq5bmAxriMyU
    JRIg4Lto6JOnj5Hi

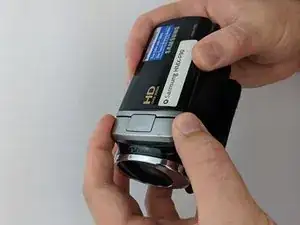

    • Rotate the camcorder so that it is facing you.

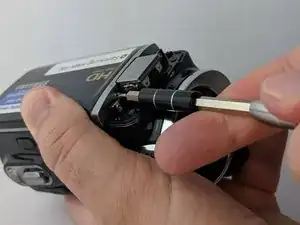

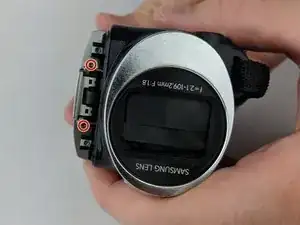

    • Locate and remove the two 4.5mm Phillips #00 screws.

  4. TtTnQdQHSrqIrOII
    TtTnQdQHSrqIrOII
    oExOVrAfxUMb2LEu
    QDI4MFFIPunepqO3

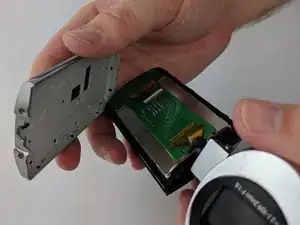

    • Open the LCD screen and rotate it around 90 degrees.

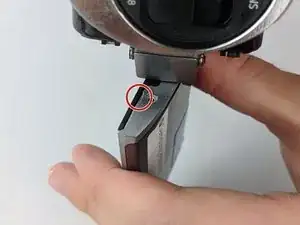

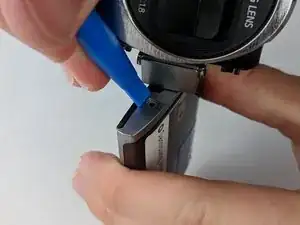

    • Locate the small prying notch and use a prying tool to slowly remove the LCD cover.

  5. BhpMUOyQ3tJPwJOl
    BhpMUOyQ3tJPwJOl
    JoBrwVyi1CmVZYNG
    SFjmYZFHj26SUf2R

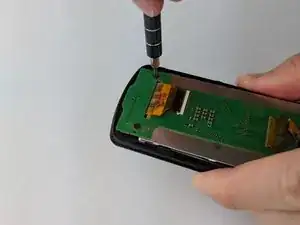

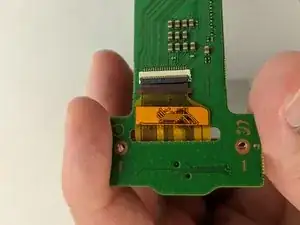

    • Locate and remove the two 3.5mm Phillips #00 screws holding the back cover.

  6. Fdcq1rklnhnqLPCe
    Fdcq1rklnhnqLPCe
    4QWKJJObXwFFRRDq
    ouRArw4w63mslOeK

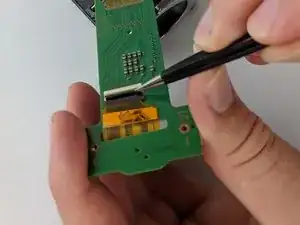

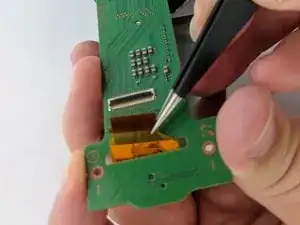

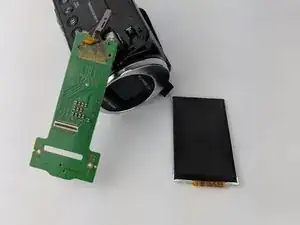

    • With tweezers gently unclip the silver tab holding the ribbon wire.

    • Gradually feed the ribbon wire through the hole to remove the screen.

Conclusion

To reassemble your device, follow these instructions in reverse order.
