Samsung DV180F Repair Back control buttons Replacement

Written By: maria
  • Comments: 0
Samsung DV180F Repair Back control buttons Replacement

Difficulty

Moderate

Steps

6

Time Required

20 minutes

Introduction

This guide shows how to replace the back buttons panel of a Samsung DV180F when damaged. This procedure is very simple since the device is not entirely disassembled. It only involes loosening a few screws and unpluging the connecting ribbons.

  1. PllGiCldpPRxPcAd
    PllGiCldpPRxPcAd
    yPv4WjqA5eCRSUc2

    • Ensure the camera is turned off and battery is taken out before you begin.

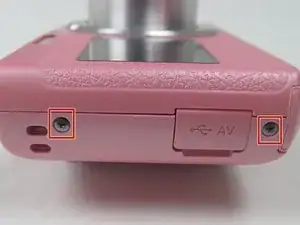

    • Remove the two external screws from the camera using a Phillips 000 screwdriver.

  2. nG5QjqhFwAGJNFY1

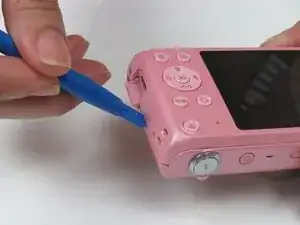

    • Insert a plastic opening tool in the gap between the camera body and back panel.

    • Pry along the right side of the camera to separate the back panel.

  3. vdXjehDBthKbNbd3

    • Once the camera is open, remove the two internal screws using a Phillips 000 screwdriver.

  4. kUHNmeVG4Hf1fGbF
    kUHNmeVG4Hf1fGbF
    r4PBFhes5LbGTaYt

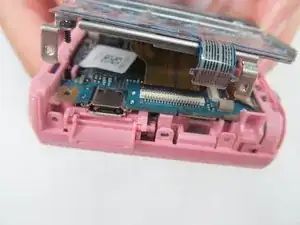

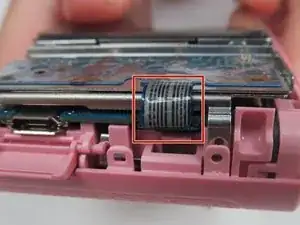

    • Use a plastic opening tool to release the lock securing the ribbon receptor to the right side of the motherboard.

    • Ribbons have to be unlocked before removal to prevent damage.

  5. CJ2oIfQwBjmRLhsD

    • Gently lift the circuit board from the camera.

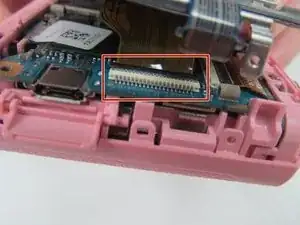

    • Remove the display ribbon receptor lock to remove back panel from the motherboard.

  6. IQTyeCTB53Ob6GdV
    IQTyeCTB53Ob6GdV
    YqcqDIOssnuhHTuU

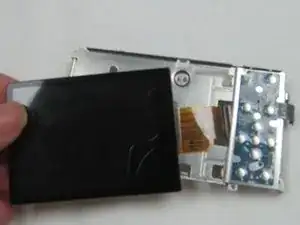

    • Remove back display.

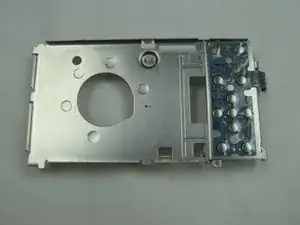

    • Replace the back button panel.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

maria

Member since: 26/09/16

250 Reputation

0 comments
