Ryobi P501G Blade Replacement

Written By: Eeshan Mishra
  • Comments: 0
Ryobi P501G Blade Replacement

Difficulty

Moderate

Steps

4

Time Required

15 minutes

Introduction

If your Ryobi P501G starts failing when using your saw, you may want to think about replacing the component. The failure may be a result of heavy use or a crack. The replacement of the blade is not complex. You will need the indicated screwdrivers and a spudger to complete this task. There are no warnings or potential hazards when replacing this part.

  1. HibLmxvPTJ5EtMZG

    • Locate the area where the blade is connected to the motor, where the circular covering is on the Ryobi P501G.

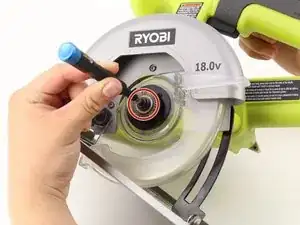

  2. ZKjwKKJKgVlhoAkg
    ZKjwKKJKgVlhoAkg

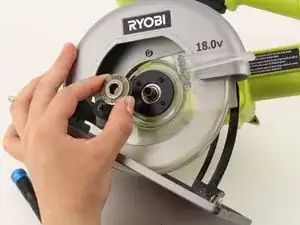

    qneQX2DmvRJWWytV

    • Unscrew clockwise and remove the bearing in the middle, connecting the blade to the motor. This will also allow removal of the blade guard.

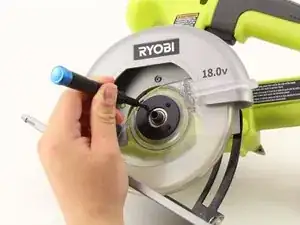

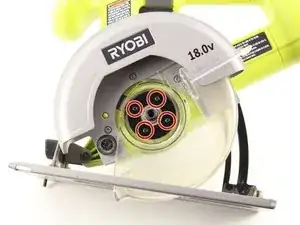

  3. PclxHqYoPJBsw3lJ
    PclxHqYoPJBsw3lJ
    MOV1ERDFbQhEw4yt
    PPMKub2PVQfl3uvn

    • Remove the four black screws holding the black bearing and remove the bearing itself.

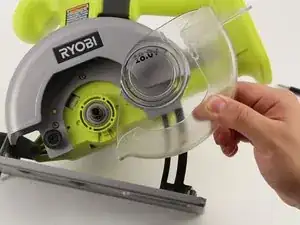

  4. LFTWPm2kpvTD6fDU

    • Once the black bearing is off, remove the transparent cover of the blade.

    • Once the cover is off, remove the blade.

    • Place the new blade with the flat notches lined up with the flat notches on the motor axle.

Conclusion

To reassemble your device, follow these instructions in reverse order.
