Ridgid JobMax R8620 Series E LED Grip Light Switch Replacement

Written By: Pengjian Zhou
  • Comments: 0
Ridgid JobMax R8620 Series E LED Grip Light Switch Replacement

Difficulty

Difficult

Steps

4

Time Required

15 - 25 minutes

Introduction

Ridgid JobMax R8620 Series E has a built-in LED light that is controlled by a switch trigger. If your LED light is functioning properly but is not turning on, it is likely that there is a problem with this switch.

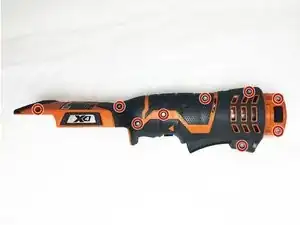

  1. 3YB6ESupSiSPoHDe

    • Pull the battery out of the case before opening the device.

    • Remove the nine 6mm screws on the drill cover using a Torx T10 screwdriver.

    • Lift off the outer casing.

  2. 4FBpBgJmCZQApRxu

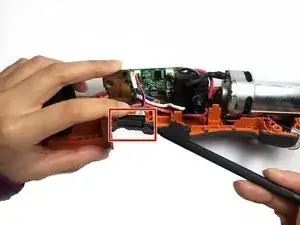

    • Locate the LED grip light switch at the waist of the device.

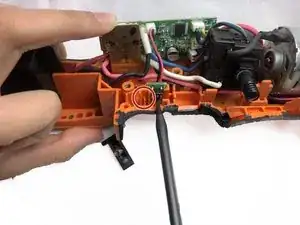

  3. FfgjANmKQjJXEsiy
    FfgjANmKQjJXEsiy
    E4fHByRGBdsScL4C

    • Remove the plastic switch with the spring from the groove of the housing by hand.

    • Check to see if there are problems with the plastic switch or the spring.

  4. iYyItBlsh4QdVoWB
    iYyItBlsh4QdVoWB
    D1nSDvctAmUFnVIn

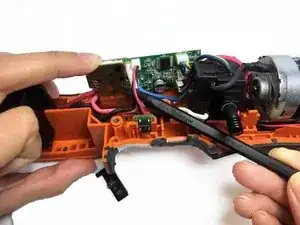

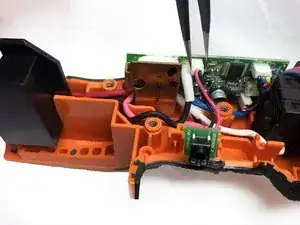

    • Find the slot on the motherboard along the wiring of the device.

    • Use tweezers to pull the plug out of the host slot.

Conclusion

To reassemble your device, follow these instructions in reverse order.
