Ridgid GEN5X R8642 Switch Replacement

Written By: Dylan Sutton
  • Comments: 0
Ridgid GEN5X R8642 Switch Replacement

Difficulty

Moderate

Steps

8

Time Required

45 minutes

Introduction

This guide is to help users replace their faulty switch for the Ridgid GEN5X R8642 saw. For this guide you will need: a soldering iron, a spudger, a T20 Torx Screwdriver, a J1 size Phillips head screwdriver, and a replacement switch for Ridgid GEN5X R8642, and a good attitude.


  1. VcOjR6M41vNyTWoo

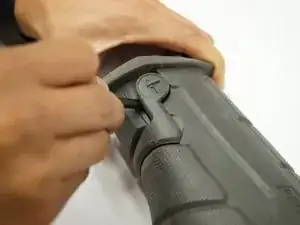

    • Remove the plastic tab holding the handle cover in place by prying upward with the spudger until the tab pops off.

  2. S1IZObKycbuI31PN

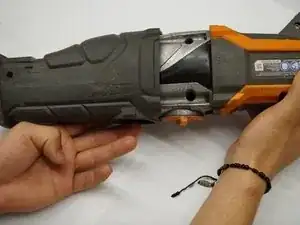

    • Remove the handle cover by pulling it towards the front of the saw.

    • The grip can sometimes become stuck and may require a decent amount of force to remove.

  3. SFvlPcreADktwkOi
    SFvlPcreADktwkOi
    Nk1MPgQAUKrO25CG

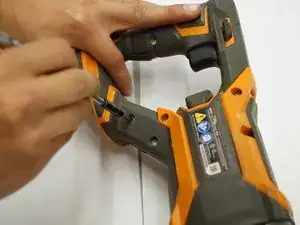

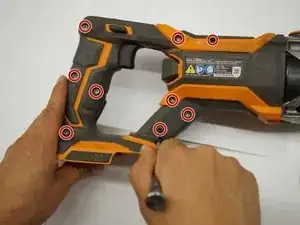

    • Use a T20 Torx screwdriver to remove the nine M4 X 16mm screws from the plastic housing.

  4. OoFKv5PEEqMMFcnb

    • Use a JIS #1 screwdriver to remove the two M4 x 25mm screws on both sides of the metal housing.

  5. p1dgYRWQNAtPNgPZ

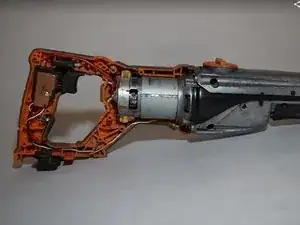

    • Remove one half of the plastic housing using a spudger so that the internal system is exposed.

  6. eUUIYpcuoMDkaOyb

    • Remove the plastic wire covers to the red and black connections on the switch assembly.

  7. AXGxKBMtECfTjChO

    • Remove the soldered connection from the switch assembly.

  8. Up5WTgPUI2R4FC62
Conclusion

To reassemble your device, follow these instructions in reverse order.
