Ridgid GEN5X R8642 Battery Port Replacement

Written By: Grant White
  • Comments: 0
Ridgid GEN5X R8642 Battery Port Replacement

Difficulty

Moderate

Steps

6

Time Required

45 minutes

Introduction

This guide is to help users replace their faulty battery port for the Ridgid GEN5X R8642 saw. For this guide you will need: a soldering iron, a spudger, a T20 Torx Screwdriver, Battery Port for Ridgid GEN5X R8642, and a good attitude.

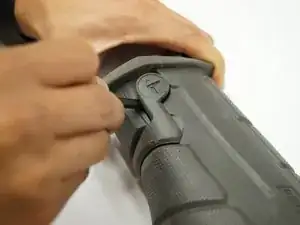

  1. XAgKTIZxfiI3YYwv

    • Remove the plastic tab holding the handle cover in place by prying upward with the spudger until the tab pops off.

  2. LDUPywDNv4D6YApi

    • Remove the handle cover by pulling it towards the front of the saw.

    • The grip can sometimes become stuck and may require a decent amount of force to remove.

  3. FkFGppjHtRTOJeOR
    FkFGppjHtRTOJeOR
    plpgEXKoZDDlK4FM
    SWJTK5nWa1aj6kY5

    • Use a T20 Torx screwdriver to remove the nine M4 X 16mm screws from the plastic housing.

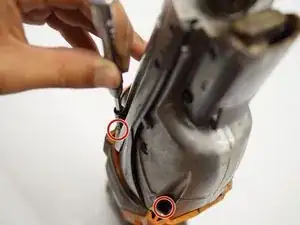

  4. IWbMZU5gTnVQ5mA4

    • Use a JIS #1 screwdriver to remove the two M4 x 25mm screws on both sides of the metal housing.

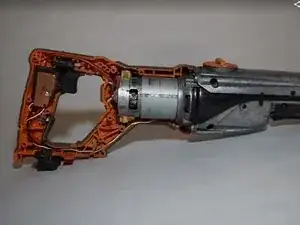

  5. kclcQvBx2AmIJ2or

    • Remove one half of the plastic housing using a spudger so that the internal system is exposed.

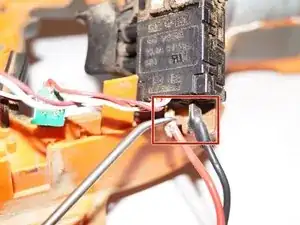

  6. HtjZIHpjRfVkCAHb

    • Remove the plastic wire covers to the red and black connections on the switch assembly.

    • When you remove the wire covers, you should be able to see the solder on the wires.

    • Desolder the connections on both the red and black wire using a soldering iron.

    • Once the solder is removed, pull out the wires with the battery port attached to the wires.

Conclusion

To reassemble your device, follow these instructions in reverse order.
