Introduction
Two tools required for the completion of this task include a PH1 screwdriver, and a prying tool.
All screws on this device are 10mm (0.393 in).
Tools
-

                  -

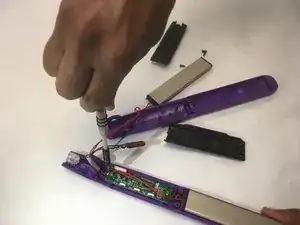

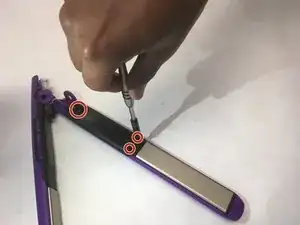

            Using a Phillips #1 screwdriver, remove the 3 screws holding the black plastic cover in place.
-
            Pull upwards and remove the black plastic cover.
-

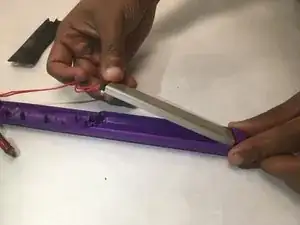

            Remove the ceramic plate by pulling the plate parallel to the straightener, while pulling upwards.

-

-

                  -

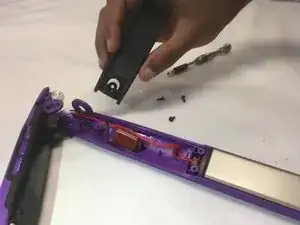

            Using a Phillips #1 screwdriver, remove the 3 screws holding the black plastic cover in place. The screws are located in the same places as the other side.
-
            Pull upwards and remove the black plastic cover.
-

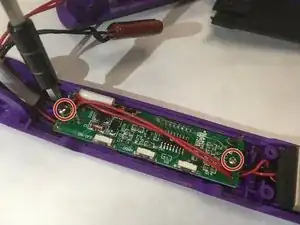

            Remove the two screws off of the chip using a Phillips #1 screwdriver.
-

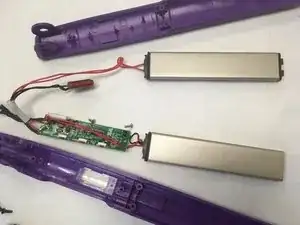

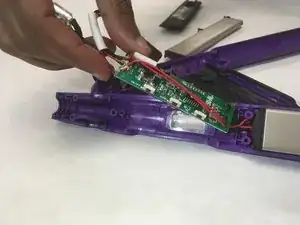

            Pull off the chip with the same method as the black plastic cover.

-

-

                  -
            Remove the ceramic plate by pulling the plate parallel to the straightener, while pulling upwards.

-

To reassemble your device, follow these instructions in reverse order.
