Introduction

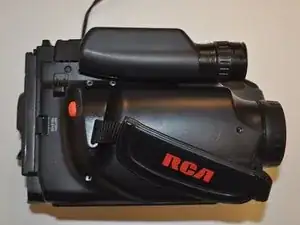

In order to replace the viewfinder on your RCA Small Wonders Camcorder CC176, it only takes a small flathead screwdriver, a safe place to keep the screws that you will take out of the camcorder, and a little bit of patience.
Tools
-

                  -
            Remove the 5 screws that secure the control panel (located on the top of the device) by using your small flathead screwdriver.
-
            Loosen the panel from the device until you are able to remove it.

-

-

                  -
            Remove the remaining 21 screws on the camcorder.
-

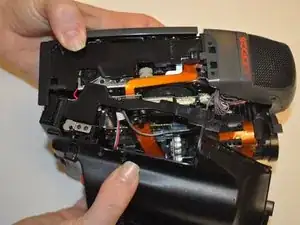

            Begin separating the plastic casing from the inner components of the device.

-

-

                  -

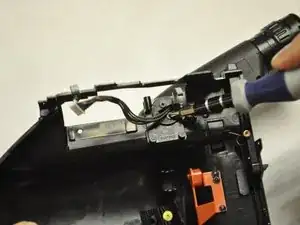

            Grasping the viewfinder in hand, carefully remove the two screws that secure the mounting device.
-

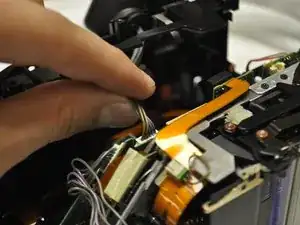

            Locate the gray electrical cord that connects the viewfinder to the inner components of the camera. Gently unplug the gray cord and loosen the viewfinder from the device.

-

-

                  -
            Separate the viewfinder from the device and feed the gray cord through the hole in the plastic casing.

-

To reassemble your device, follow these instructions in reverse order.
