Introduction
RCA Small Wonders Camcorder cc176 was manufactured in May 1993. Use this guide to remove and replace the speaker on this device.
Tools
-

                  -
            Remove the small black screws along the edges of the control panel on the top of the device.
-

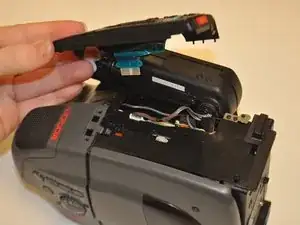

            Pry off the top control panel using the plastic wedge tool.
-

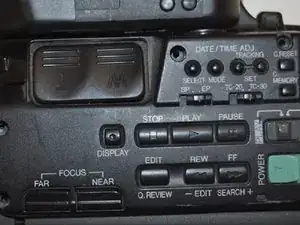

            Remove the screw from the front, gray panel located beneath the "Scene Select AE" label.
-
            Remove the two small black screws on the top of the front, gray panel of the device, above the red AUTOFOCUS letters.

-

-

                  -
            Turn the device over and remove the two screws securing the front panel of the device.
-

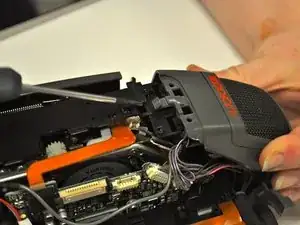

            Remove the screw securing the primary viewfinder, along the front of the camera.
-

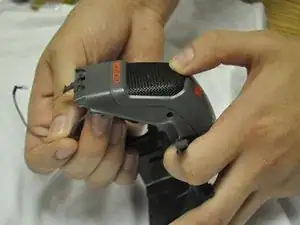

            Using a flat plastic tool, pry the entire front panel away from the device.

-

-

                  -

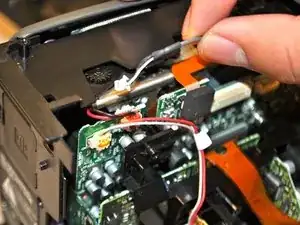

            Gently unplug the grey cord, located underneath the panel, disconnecting the speaker from the inner component of the device.
-
            Remove the speaker from the device.

-

To reassemble your device, follow these instructions in reverse order.
