Introduction

This replacement guide will teach you how to replace a worn speaker. This will ensure the device has quality sound. If the speaker has not fixed the issue there may be an electrical shortage in the device.

  1. UDSNgZSXDcPOkCxS
    UDSNgZSXDcPOkCxS
    DENsulSRatZWXAEL

    • Push down on the clip to release pressure. The pull off the plastic cover.

  2. 4BovUQcJMFlSaWPr

    • Remove the 9-volt battery from the battery terminal.

  3. ZijJUuFhEkvXtNkL

    • Take out the six screws located on the back of the device.

    • The red screws are 10 mm Phillip's #1. The orange screws are 13 mm Phillips #1.

    • Three screws are located on the back panel. One is located inside the battery carriage.

    • Two screws are located on the on the back panel on the bottom left and right side.

  4. hwsQyiOJDT6fM55R
    hwsQyiOJDT6fM55R
    nJsxgDgKGpHQwFZk
    l4Ia1a2hm2Ln32xS

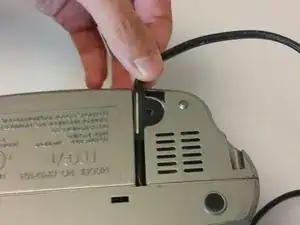

    • Remove the 10 mm Phillip's #1 screw.

    • Then remove the metal reinforcement.

  5. A4DDyIfEACjf4vn6
    A4DDyIfEACjf4vn6
    GRIrKZGNJhSEmdgK

    • Using flathead screwdriver undo the release tabs.

  6. LBGjVybXTyw5wAIk
    LBGjVybXTyw5wAIk
    hEd1qDkF23SIqCYt
    El5xXXtP5XCpCljQ

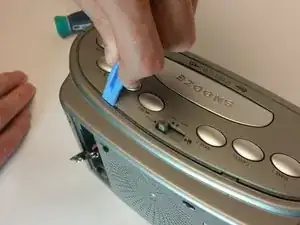

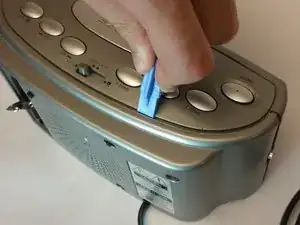

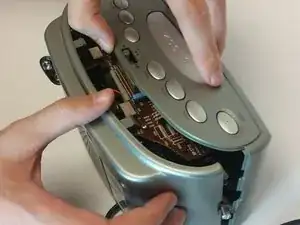

    • Pry the release tabs with a spudger.

    • Start with back of the device on the topside.

  7. AN2tCmEBrhtSTXJO
    AN2tCmEBrhtSTXJO
    JgwcFb2brX3TiGDf

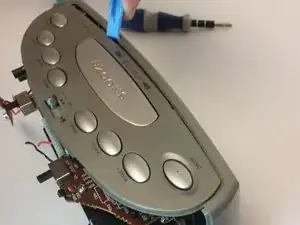

    • Pry open both tabs to remove the topside of the clock.

  8. cHmSsLGnqljTYLVk

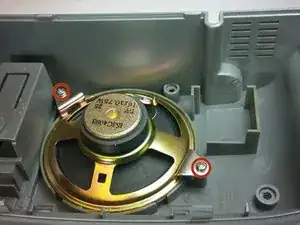

    • Remove the two 10mm Phillip's #1 screws. Also remove the two reinforcements holding the speaker in place.

Conclusion

To reassemble your device, follow these instructions in reverse order.
