Introduction
This guide will focus on replacing the speakers on the RCA RCR8622 in a step by step manner.
-
-

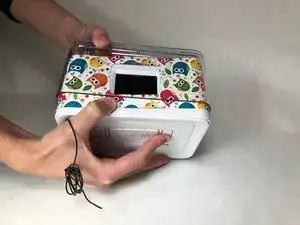

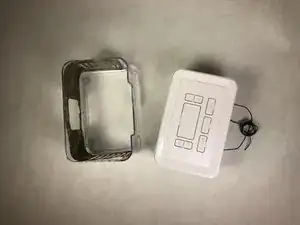

Remove the casing. Slide the plastic cover with the graphic off the main base. Be careful and hold both sides.
-

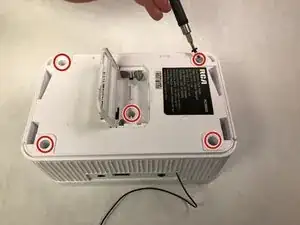

Flip the device over and unscrew the five 11 mm screws with a Phillip's #1 screwdriver.
-
-
-

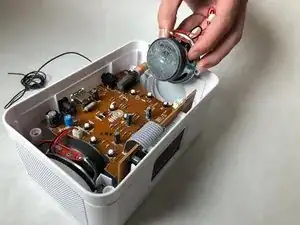

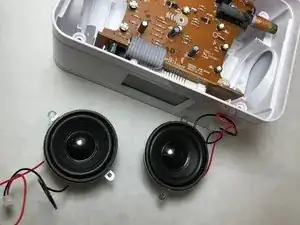

Pull the top of the device off and look closely at the motherboard. You will see two speakers, one on each side of the device.
-

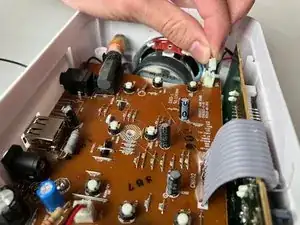

Grab the tweezers and follow the red and black wires leading from the speaker to the motherboard. They will attach to a white casing. Lift the white plug out with the tweezers to disconnect.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
