Introduction
This guide will instruct you to replace the onboard microphone if it is faulty.
Parts
-
-

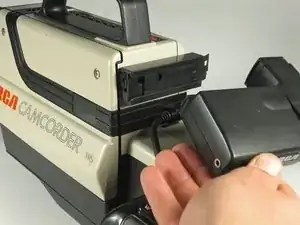

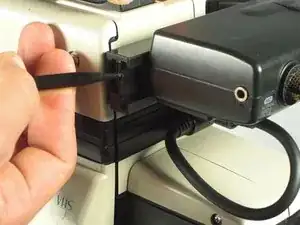

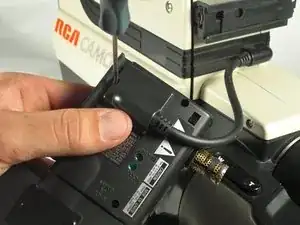

Unscrew the 7.0mm ph#0 screw on the underside where the cable connects.
-
Lift the plastic where the cable is connected to the viewfinder.
-

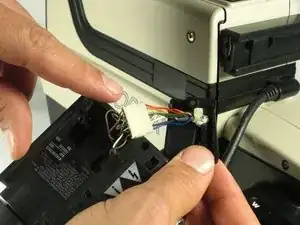

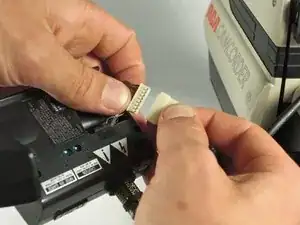

Disconnect the cable inside by pulling it apart.
-
-
-

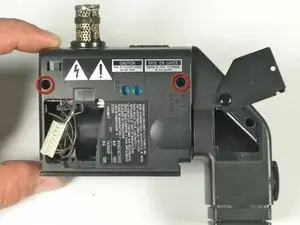

Unscrew the two 7mm ph#0 screws on the underside of the viewfinder assembly.
-
Lift the viewfinder plastic assembly up.
-
-
-

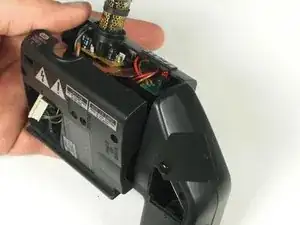

Lift the microphone circuit board straight up.
-

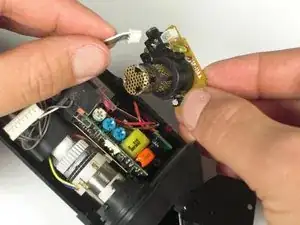

Unclip the cable connected to the circuit board.
-
-
-

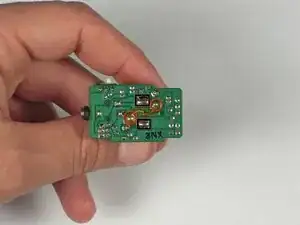

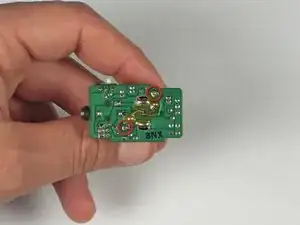

Turn the microphone circuit board over.
-
Unscrew the two Ph#0 screws holding the plastic housing on the circuit board.
-
-
-
Desolder the metal protective housing using a soldering iron.
-
Desolder the microphone and replace it.
-
To reassemble your device, follow these instructions in reverse order.
