Qualcomm Snapdragon 800 Mobile Development Speakers Replacement

Written By: Paola
  • Comments: 0
Qualcomm Snapdragon 800 Mobile Development Speakers Replacement

Difficulty

Moderate

Steps

12

Time Required

10 minutes

Introduction

In order to get to the speakers, the battery, back panel, and logic board need to be disassembled first.

  1. PJDmlPL5DBibceEV
    PJDmlPL5DBibceEV
    ivkTPGfhAUOxeTSZ

    • Locate your device.

    • Flip device onto its back.

  2. FLCddOXngB6QH5wq

    • Remove the tablet's back cover.

  3. clnGFkiBaBSpQAQn

    • Locate the battery and remove it.

    • If you wish to replace the battery you can do so here.

  4. DFTZWDC5wp2qSXVV
    DFTZWDC5wp2qSXVV
    2ApWh6mI5jDMO32R

    • Use the Phillips PH1 screwdriver to unscrew the five 4x2.5mm screws that hold the back cover.

  5. LDFNDc6UfZJIuGSW

    • Pop out the back cover.

  6. 6WFwyPyoJMQhi11T
    6WFwyPyoJMQhi11T
    aqUhmlM5QdqTXVyU
    gKbJaiCpXWnJCIPM

    • Start by disconnecting the cables attached to the motherboard

    • use the spudger to lift the connectors vertically off. They should pop off with relative ease

    • The last connector has a yellow tab. Pull up on the tab until the small metal catch lifts up. Then pull straight back to remove the connector from its socket.

  7. EVGaqhfXGgd2rvSF

    • Using the Phillips PH1, remove all 6 of the 3x2.5mm screws (circled in red) holding the motherboard in place.

  8. pj6biiEsiCnh2uo4

    • Using the spudger lift the motherboard out of the tablet frame.

  9. JEDVAZv1cH43jBWX

    • Locate the two speakers in each of the bottom corners (left and right).

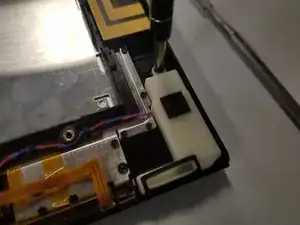

  10. VbppGWw3IPgkJn3X

    • Use the Phillips PH1 screwdriver to remove the 3x2.5mm screw on the right speaker.

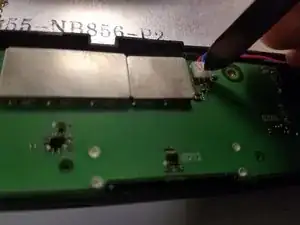

  11. DqBTAbMeWLx1AUJ1

    • Use the spudger to disconnect the speakers.

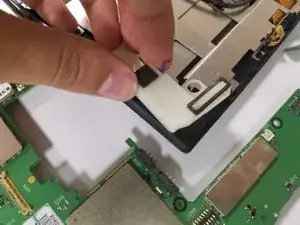

  12. gbKFYPR4aXsy3WGf

    • Lift the speakers out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
