Presidential Footrest Disassembly

Written By: Nick
  • Comments: 0
Presidential Footrest Disassembly

Difficulty

Easy

Steps

4

Time Required

10 minutes

Introduction

  1. mY1blIRjoBNrTaN4

    • Be sure footrest is on a surface that wont scratch the bottom.

    • Remove the 9 screws on the plastic cover.

    • The Orange circle is the screw that holds the bracket in place . this screw does have a bushing on it DO NOT LOSE IT.

    • Cut zip tie on cable bundle .

  2. qBGfq4mf2y55mohc

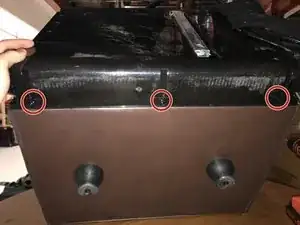

    • Tilt Footrest forward and remove 3 Bottom screws.

  3. OP4h1IJYf6iFAMNf

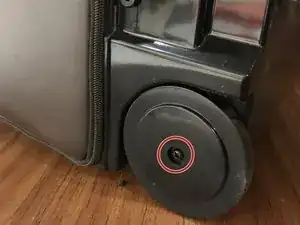

    • Remove screws on left and right wheel and remove wheels from assembly .

    • Be sure to put wheels in safe place to avoid any damage.

  4. 3cMLFWF3gjNtAbZX

    • WHEN PULLING OFF THE COVER THE CABLE BUNDLE WILL NEED TO BE THREADED THROUGH THE CUT OUT ON THE COVER. DO NOT FORCE IT. THIS MAY RESULT IN DAMAGING THE CONNECTORS .

    • You're done ! from here you have complete access to extend mechanism and valve.

Conclusion

To reassemble your device, follow these instructions in reverse order. DON'T FORGET TO REPLACE ANY CUT ZIP TIES
