Introduction
Sometimes it's useful to remove the interior door panels to make some part changes. Here's how to do it.
Tools
-
-

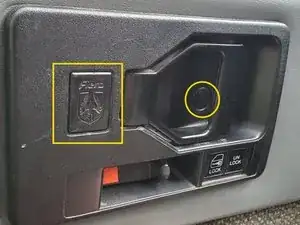

There are 3 screw covers to remove:
-
At the top of the door handle
-
The Fiero logo above the lock
-
Under the handle for opening the door
-
Simply use a flat screwdriver to "pop" the screw covers.
-
-
-

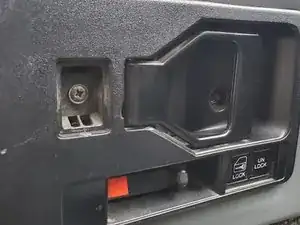

Using a Phillips screwdriver, remove the 5 screws indicated in yellow.
-
After the 3 of the armrest, it will no longer hold after the door. You can put it aside.
-
-
-

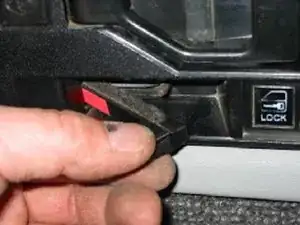

Remove the black-orange latch by pulling it towards you.
-
Remove the entire black door opener module. Slide it forward to pass the handle.
-

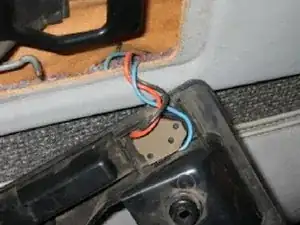

You may have to detach the door lock buttons, if you have that option.
-
-
-

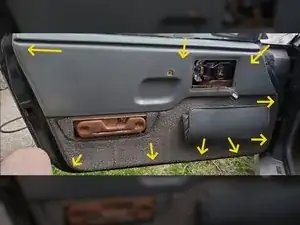

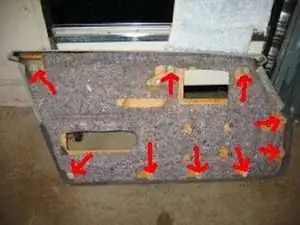

Detach the panel at the 9 points indicated by yellow arrows.
-
Either gently pull on the panel, by hand or you can use a prying tool.d
-
To reassemble your door, follow the instructions in reverse order.
