Introduction
This guide is intended for users who have Polaroid Z2300 with a malfunctioning control panel.
-
-
Locate and remove the two 2.5 mm long screws on the bottom of the camera.
-
Screw head: JIS J00
-
-
-
Once the two screws are removed, flip the camera to back side up.
-

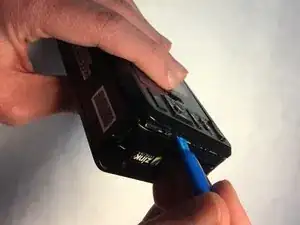

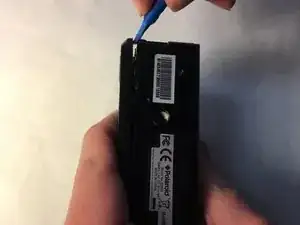

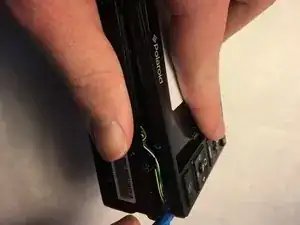

Use a plastic opening tool to disengage the outer plastic trim until it can be safely removed.
-
-
-

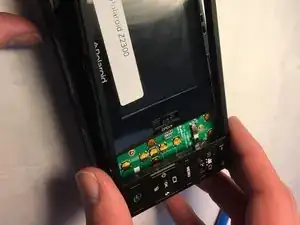

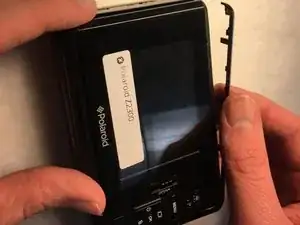

Use a plastic opening tool to pop the control panel off, it should be easy to lift up and remove.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
