Polaroid Cube Lens Replacement

Written By: Grant Baldwin
  • Comments: 3
Polaroid Cube Lens Replacement

Difficulty

Moderate

Steps

13

Time Required

15 - 45 minutes

Introduction

This guide provides a great explanation about how to replace the lens of the Polaroid cube.

Due to the thickness and width of the screws, make sure to carefully remove them using a screwdriver and a magnet pad.

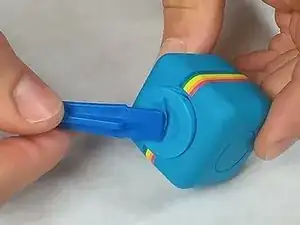

  1. DdJ4o4omaATKXYis

    • Remove the SD card cover by twisting it using a Plastic Opening Tool

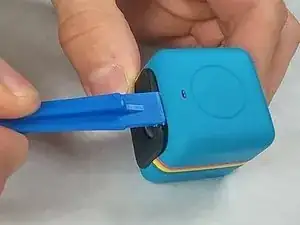

  2. ZF2XcMkKIMyJH2TO

    • Use the Plastic Opening tool to pry off and remove the front cover.

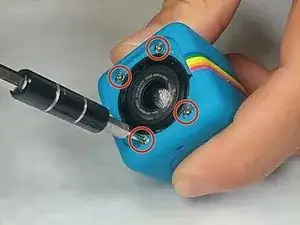

  3. mTBBGPlIPsGIRPXG

    • Using a J00 head screwdriver, remove the four 3.27mm screws from the front of the camera near the lens.

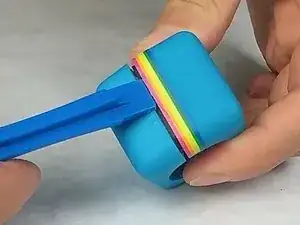

  4. uQyg2VtQAltWS6jN
    uQyg2VtQAltWS6jN

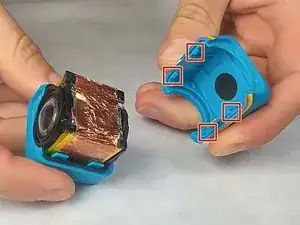

    wdrqvfvc3wEm4wnL

    • Use the Plastic Opening Tool to pry open the shell of the camera.

    • There are four latches, one at each corner, that you will need to detach.

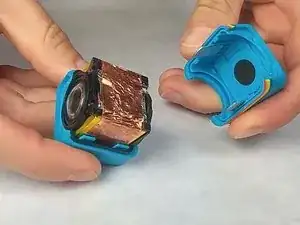

  5. oLHYAbWJ2TRYQYNa

    • Remove shell from top and bottom of camera.

  6. DPoBKMk32PLUdhC4

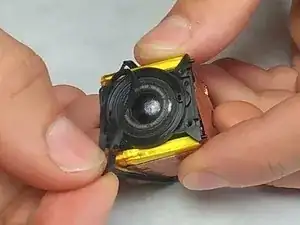

    • Remove the rubber seal wrapped around the camera.

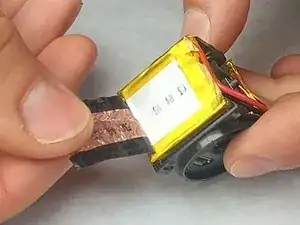

  7. b4GRdqaHSWkZHZUU
    b4GRdqaHSWkZHZUU
    G6BOElMnKnxjauyK

    • Remove the tape wrapped around the battery.

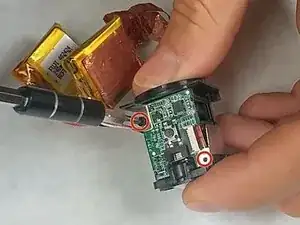

  8. eIjtgoOcUiwL3qDN
    eIjtgoOcUiwL3qDN

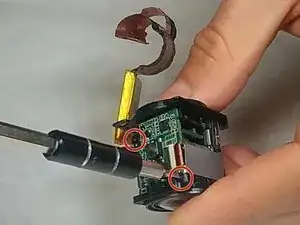

    VFcVrCJiZKIrpYst
    SKEUcJelxqHueYRP

    • Using a J00 head screwdriver, unscrew the four 3.46mm screws from the top and bottom circuit board.

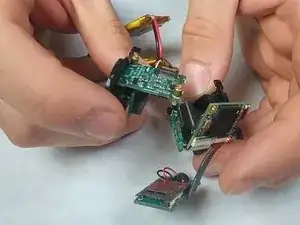

  9. ZcjVLyOIVQHLqxsI
    ZcjVLyOIVQHLqxsI
    tuMxlBpYHkHlxSVx

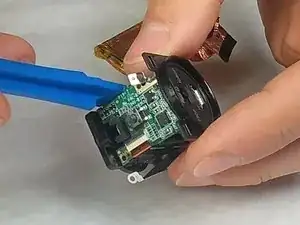

    • Use the plastic opening tool to remove the circuit board that the battery is connected to.

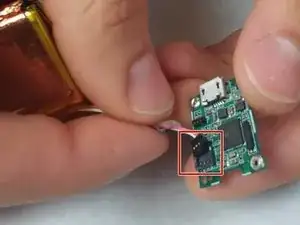

  10. e2MFvRd2xXKuvWYp

    • Gently remove the battery pin connector from the circuit board.

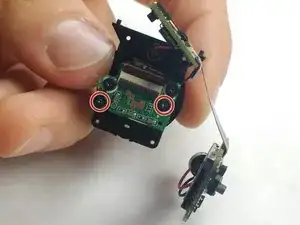

  11. nonSUI5nWNbHI62L
    nonSUI5nWNbHI62L

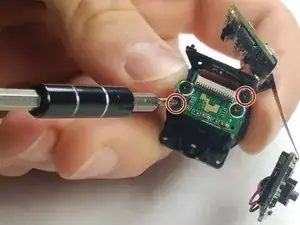

    F3KYFZvTimiDVxmJ

    • Use a J00 screwdriver to unscrew the two circled 3.5mm Phillips-head screws from the circuit board.

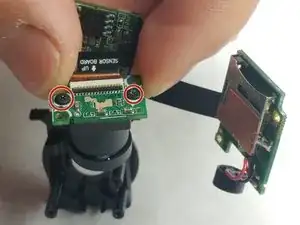

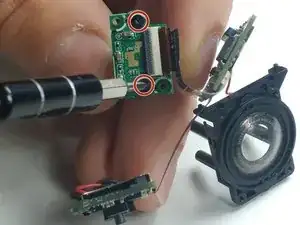

  12. tlOca1uNkRRABG3K
    tlOca1uNkRRABG3K
    JpJ2iJ3HAeHkVJhV

    • Use a J00 head screwdriver to unscrew the two 3.5mm screws from the circuit board.

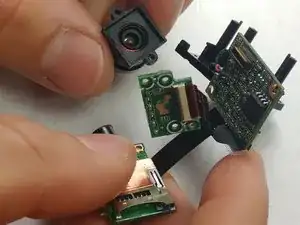

  13. g1gmXISJWitloZ4K

    • Remove the lens from the unscrewed circuit board and replace the broken lens.

    Hey! Where can I buy a lens for the Polaroid Cube?

    Karlie E -

Conclusion

To reassemble your device, follow these instructions in reverse order.
