Introduction
This guide will help you replace the spring in your Philips Sonicare FlexCare toothbrush.
Tools
-

                  -

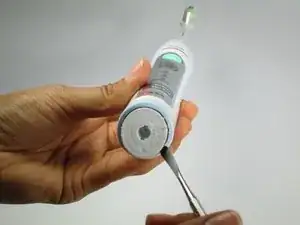

            Push the flat edge of a nylon or metal spudger between the seal and the toothbrush body and pry it up. Do this on each side until the seal is partially sticking out on all sides.

-

-

                  -

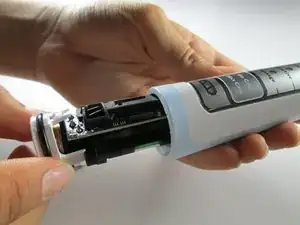

            Apply pressure to the shaft by pressing it against a firm and flat surface. Continue to apply pressure until the interior electronics are exposed.

-

-

                  -

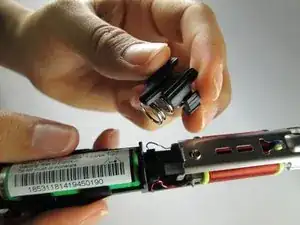

            Pull off the black rubber ring with a metal or nylon spudger until it clears the metal piece that holds it in place. Pull the ring out.

-


                            Conclusion

                          To reassemble your device, follow these instructions in reverse order.
