Philips Sonicare DiamondClean Circuit Board Replacement

Written By: Caleb Watson
  • Comments: 0
Philips Sonicare DiamondClean Circuit Board Replacement

Difficulty

Difficult

Steps

6

Time Required

2 hours

Introduction

  1. fHGaj3rEdPcPkkJJ
    fHGaj3rEdPcPkkJJ
    FZLNROn6OKQGmfbL

    • Pull the brush head from the toothbrush.

  2. 62Zu6YB2gLDdX46H

    • Use a spudger to pry the chrome cap from the base of the toothbrush.

  3. Hhw6UW5ArbY4UQoP
    Hhw6UW5ArbY4UQoP
    fmB2UMdOQUAslh3w
    roUZoMfuHONf2HCx

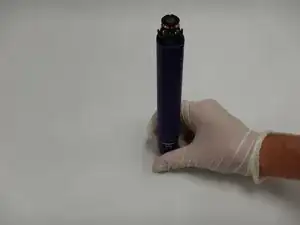

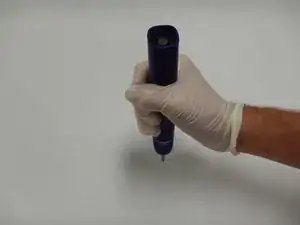

    • Invert the toothbrush and apply pressure against the metal tip until the internals and casing separate.

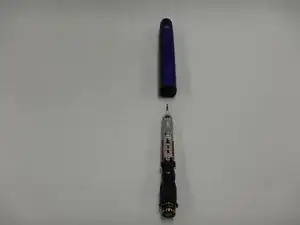

    • Remove the internals from the casing.

  4. oG2M1Y1MXFUB1Jqe

    • Remove the rubber covers from the circuit board and battery.

  5. cDcVmln1tDksWMFF

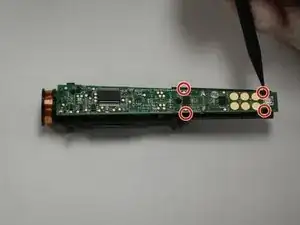

    • Carefully free the top end of the circuit board from the plastic clips holding it in place.

  6. 5RAvxGNBwFjJSZWW

    • Use the soldering iron to desolder the terminals marked F1, C5, R7, R6, and JP1.

    • Check out our How to Solder and Desolder Connections guide for help with soldering best practices!

    • Remove the circuit board.

Conclusion

To reassemble your device, follow these instructions in reverse order.
