Philips Sonicare 2 Series Motor Replacement

Written By: Jonathan Jarvis

Comments: 6

Philips Sonicare 2 Series Motor Replacement

Difficulty

Difficult

Steps

Time Required

20 minutes - 1 hour

Introduction

This guide is for the Philips Sonicare 2 series HX6211/46 toothbrush. It shows you how to replace the motor for this toothbrush. He is a link for a guide how to soldering which will be needed for this guide. How To Solder and Desolder Connections

Tools

Parts

Philips Sonicare 2 Series Motor

Step 1

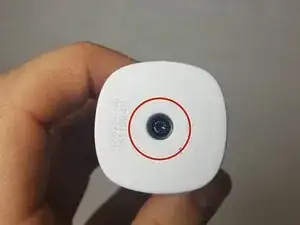

Pull upwards to remove the brush head from the top of the device.

Step 2

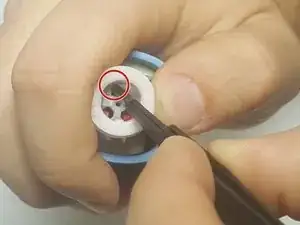

Remove the 12 mm T8 Torx screw from the bottom of the toothbrush. After removing the screw, pry off the base with a plastic opening tool.

Step 3

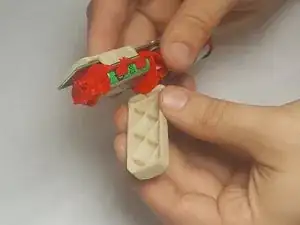

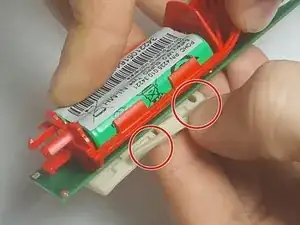

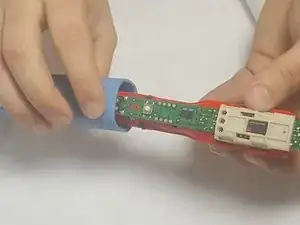

Remove the internal electronic mechanism from the housing by prying the red clips shown in the figure. This removes the charging port.

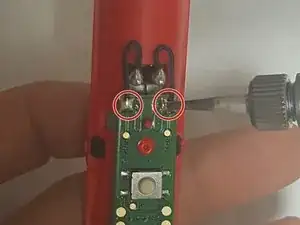

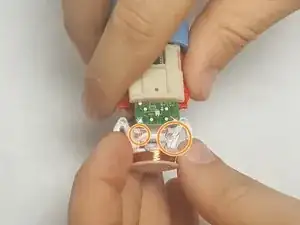

Be very careful not to damage the charging port during this step. Otherwise you will have to solder this part back to the device as shown in the second figure.

Do all the three clips need to be pushed towards the center? Can you share details on how to pry the clips?

Marc T - 17/05/20

Yes, press them toward the center…

Randy Rue - 21/12/20

In my case, I didn’t remove the charging coil. I just pry loose the two white plastic anchors (part of the charging coil) on the two sides while pushing backward from the tip of vibrating rod at the other hand.

Anonymous - 28/03/21
