Pentax PZ-10 Flash Bulb Replacement

Written By: Bryan Sugiarto
  • Comments: 2
Pentax PZ-10 Flash Bulb Replacement

Difficulty

Moderate

Steps

4

Time Required

5 minutes

Introduction

If the flash is no longer functioning after continued use, the flash bulb may need to be replaced.

  1. HPHbJ5KJCly6KtaT

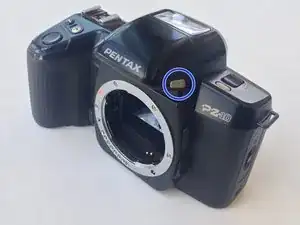

    • With the camera facing you, open the flash bulb by pushing the grey button to the right of the logo.

  2. 2HYxYtVutTXZKIbR
    2HYxYtVutTXZKIbR
    JEnTXEYxIRhbVmjK

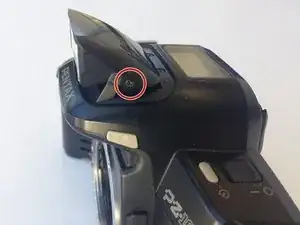

    • Remove the two 5.5 mm JIS #0 screws on the sides of the flash assembly.

  3. tiRrOgDx5FWsLkTb

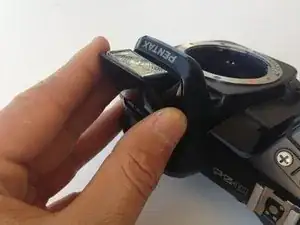

    • Gently pull off the flash cover. It should come free with very little force.

  4. MYwxAPacuy133kOU

    • The flash bulb assembly is now ready for replacement

Conclusion

To reassemble your device, follow these instructions in reverse order.
