Pentax Optio WG-2 LCD Screen Replacement

Written By: Matthew Bessette
  • Comments: 2
Pentax Optio WG-2 LCD Screen Replacement

Difficulty

Moderate

Steps

8

Time Required

5 minutes

Introduction

Use this guide to replace the LCD viewing screen on the back of the Pentax Optio WG-2.

  1. iQMdIOX12rjFiMQl
    iQMdIOX12rjFiMQl
    RRLyZoNftbUQOYXZ

    • Remove all four 1 mm JIS #00 screws from the back of the camera.

  2. XGQ2pdZYn5kTsthu

    • Use your finger to peel the grip off the top of the camera.

    • For best results, start from the right side of the camera, opposite the buttons.

    • Once the grip is removed, you will most likely lose the water-tight seal.

  3. GjcvS4ppoRXOl2TT

    • Use the tweezers to remove the two buttons from the top of the camera.

    • The buttons may fall out while removing the grip.

  4. OpNim4RE1FRnvq1E
    OpNim4RE1FRnvq1E
    w4a1ePCL1LRMHTuI
    fGNJkOmSeAYcJpCE

    • Remove the three 1 mm JIS #000 screws from the top.

    • Remove the 1 mm JIS #000 screw from the bottom.

  5. LfsVsjOXySfmOWni

    • Carefully separate the back and the front of the camera.

    • There are three ribbon cables connecting the two boards. Be careful not to tear them.

  6. aPIJIefXJRsYWARK

    • Use the tip of a spudger to flip up the small retaining flaps on the ribbon cable ZIF connectors.

    • Carefully pull the ribbon cables out of their sockets.

  7. bFFWPAGWKGmZ2Tiw
    bFFWPAGWKGmZ2Tiw
    sBxAfwqKLMOldfmE

    • Carefully remove the clear tape covering the screws and the ribbon cable.

    • Be careful not to tear the ribbon cable when removing the tape.

    • We want to remove the larger silver panel (right). The best way to do this is to slightly bend the cover backwards and use the tweezers to grab a corner and slowly lift the screen up and out.

  8. GXYO3s3VtIGv6J1A
    GXYO3s3VtIGv6J1A
    QQ4oBqshfLa2qrth

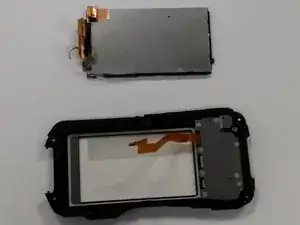

    • Once the screen is removed you should have two pieces as seen in the picture.

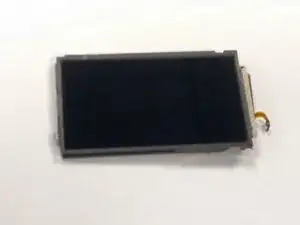

    • The screen is the silver rectangle in the top of the picture or the component seen in picture two.

Conclusion

To reassemble your device, follow these instructions in reverse order.
