Introduction
Use this guide to replace the battery of your Pentax Optio WG-2.
Tools
-
-

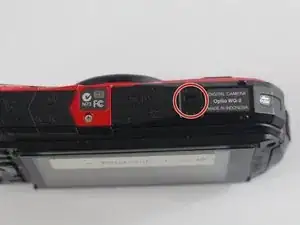

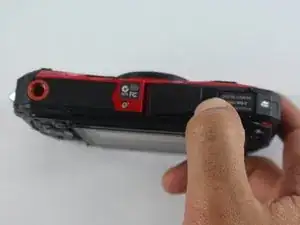

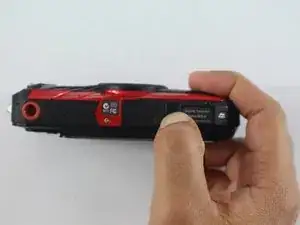

If you look on the bottom of the camera you will see a "bump" and in the center of said bump there is a small tab. Simply move the tab and push away from the camera.
-
-
-

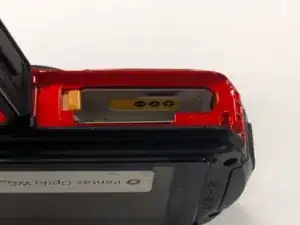

Now that the tab is open, look inside to see a label (yellow in picture). Simply line up the signs (+ T - ) with the battery and slide in. To close the lid just push down and slide it the opposite way in step one.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
