Introduction
Is your Panasonic Lumix DMC-ZS6 camera’s lens damaged, weirdly colored, flickering, or not functioning properly at all? If so, it may be time to replace it with a new lens.
In this guide, you are shown how to carefully take apart pieces of the camera in order to successfully pull apart a damaged camera lens from its motherboard, and replace the lens with a new functioning one.

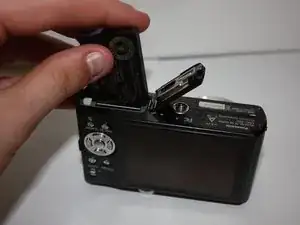

Before proceeding, make sure to turn the device completely off.
-
-

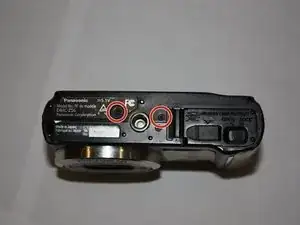

Unscrew the two bottom 1.0 mm screws with a Phillips #000 screwdriver.
-

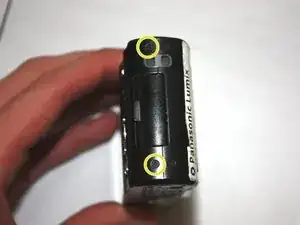

Unscrew the two 1.0 mm screws to the left with a Phillips #000 screwdriver.
-

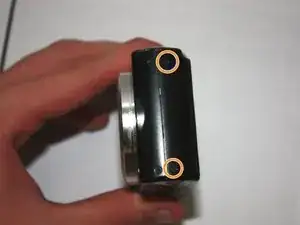

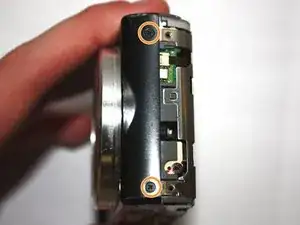

Unscrew the two 1.0 mm screws to the right with a Phillips #000 screwdriver.
-
-
-

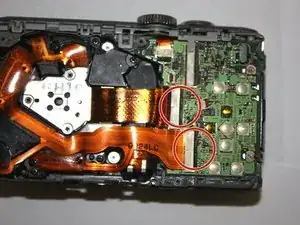

Use the tip of the 2.0 mm flathead screwdriver to flip up the black tabs on the ribbon cables.
-
Pull gently on the ribbon cables to unseat them.
-
-
-

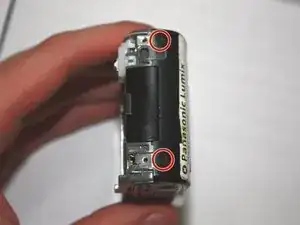

Unscrew the two 1.0 mm screws to the left with a Phillips #000 screwdriver.
-
Unscrew the two 1.0 mm screws to the right with a Phillips #000 screwdriver.
-
Unscrew the two bottom 1.0 mm screws with a Phillips #000 screwdriver.
-
-
-

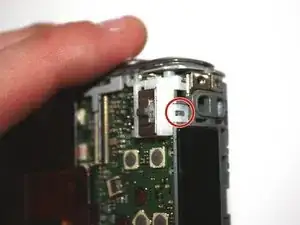

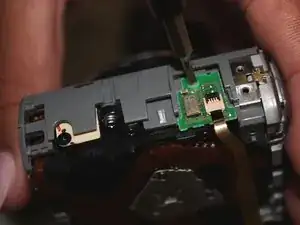

Use the tip of the 1.5 mm flathead screwdriver to disengage the plastic tab.
-

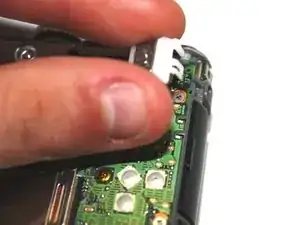

Carefully lift the selector switch away from the motherboard.
-
-
-

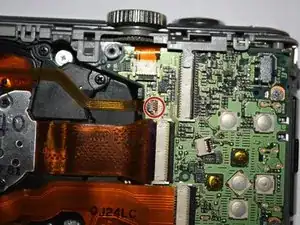

Unscrew the three silver 1.0 mm screws with a Phillips #000 screwdriver.
-
Use the tip of the 2.0 mm flathead to disengage the metal tab, then carefully lift the shield away from the motherboard.
-
-
-

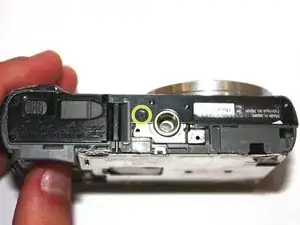

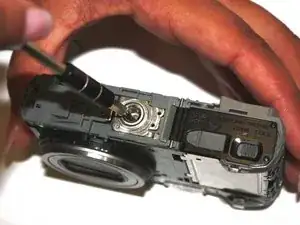

Insert the tip of the 2.0 mm flathead into the center hole of the tripod mount, and apply force in the direction facing away from the button.
-
Carefully lift the tripod mount out of the camera body.
-
-
-
Use the 2.0 mm flathead to flip up the brown tab on the motherboard and carefully unseat the ribbon cable.
-
Insert the tip of the 2.0 mm flathead screwdriver into the hole on the daughterboard, then apply upward force to remove the daughterboard from the main case.
-
-
-
Use the 2.0 mm flathead to flip up the two tabs on the motherboard and carefully unseat the ribbon cables.
-

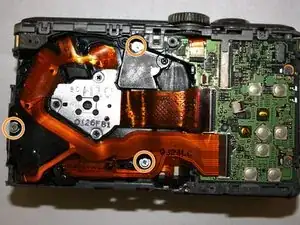

Unscrew the three silver 1.0 mm screws with a Phillips #000 screwdriver.
-

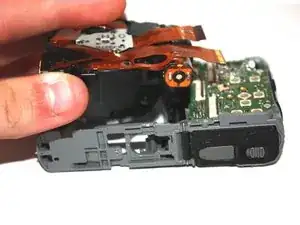

Carefully lift the lens assembly out of the camera.
-
To reassemble your device, follow these instructions in reverse order.
