Panasonic Lumix DMC-ZS25 Lens Replacement

Written By: Abbas Khan
  • Comments: 2
Panasonic Lumix DMC-ZS25 Lens Replacement

Difficulty

Easy

Steps

8

Time Required

15 minutes

Introduction

Use this guide to replace the camera lens of your Panasonic Lumix DMC-ZS25. It will describe the procedure to disassemble your camera in order to replace the lens.

  1. dASKSvZFOIdkbqWF
    dASKSvZFOIdkbqWF
    DY5p31ZFl3UOMHI1
    LtkI23vV3o2xURxO

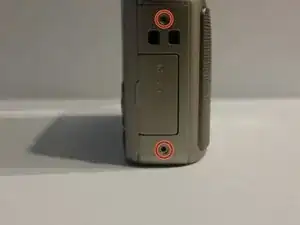

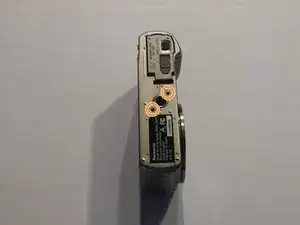

    • Open the four 3.40 mm screws from the right and left sides of your Panasonic Lumix Camera.

    • Remove the two 2.60 mm screws located next to the battery.

  2. 3ApRPKKSERJbPvvE

    • Use the iFixit opening tool to open the outer cover of your device.

    • The easiest place to open your device is from the HDMI port.

    • Gently open it to avoid breaking the cover.

  3. DwDMcMlUgcyn3fki
    DwDMcMlUgcyn3fki
    SuSZZpkebBrBJfbN
    Ph3osqIRFBLgwTEP

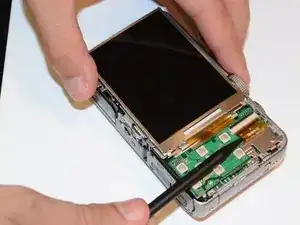

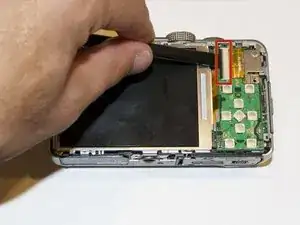

    • Use a spudger to detach the ribbon cable.

    • Be careful when using the spudger, as it can cause damage to the ribbon.

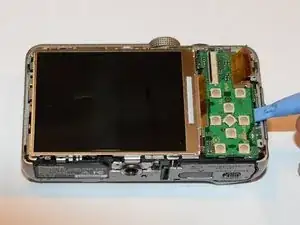

    • After releasing the screen cable, use the iFixit opening tool to lift the button board.

    • Once you hear a "click" sound, you have successfully opened the buttons board.

  4. 1vfcqYRVOKrZGw5i
    1vfcqYRVOKrZGw5i
    rxrpD1CSQ1bDArBs

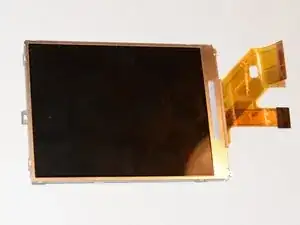

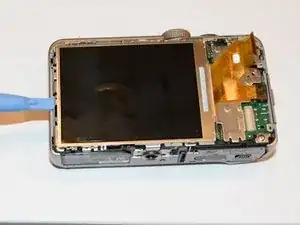

    • Remove the screen using the iFixit opening tool.

  5. lkcyNfb6OwVTxyuY
    lkcyNfb6OwVTxyuY
    6mOoOenLshgoYS2n

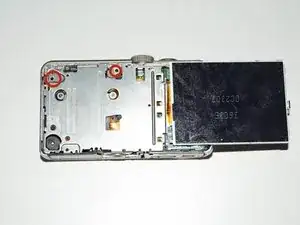

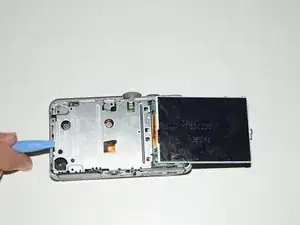

    • Open the two 4.20 mm screws to remove the inner cover located beneath the screen.

    • Use the iFixit opening tool to assist in safely removing the inner cover.

    There are FOUR screws holding this metal plate on! Not two.

    Albert Einstein -

  6. KNTSRycuYDBQySaW
    KNTSRycuYDBQySaW
    qsAsrjFN1FF4HGmJ

    • Separate the device into two pieces as shown.

  7. OwBbVhUBxp1ISOfg
    OwBbVhUBxp1ISOfg
    DSUY1Vix5MlEvFnO
    AHZZdmTMJZAIKQ43

    • Remove the side cover using the iFixit opening tool.

    • Exercise caution when you remove the front cover as damage to the device can occur.

    There is no need to take the side/front cover off. The lens will come out as soon as you disconnect the two ribbon cables.

    Albert Einstein -

  8. VvFr1TerUxGXt5RK
    VvFr1TerUxGXt5RK
    XtH42cLDDhSSJmLk
    KQSXElKHdkw2SDSN

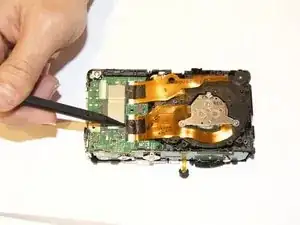

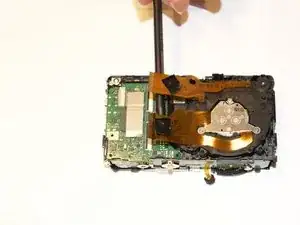

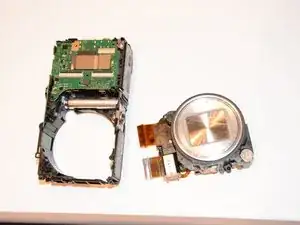

    • Use the spudger to unlock the screen cables from the circuit bored. Carefully, lift up the black clip up to release the cables.

    • Use your hands to remove the lens.

Conclusion

To reassemble your device, follow these instructions in reverse order.
