Panasonic Lumix DMC-G5 Lens Connection Assembly Replacement

Written By: Gabriel Gonzalez Jr
  • Comments: 0
Panasonic Lumix DMC-G5 Lens Connection Assembly Replacement

Difficulty

Easy

Steps

4

Time Required

6 minutes

Introduction

Replacing the lens connection assembly requires partial removal of the front lens panel of the device, necessitating the removal of several small screws.

  1. DKSqnDUcXPBfFRqJ

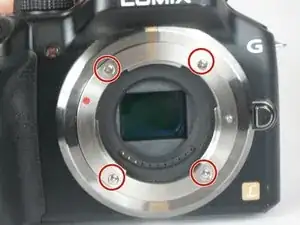

    • Remove the four 5.4 mm J000 screws from the front lens mount.

  2. a2XjhNUMfoI1RCRI
    a2XjhNUMfoI1RCRI
    nYLqQFDIlGugG3SA

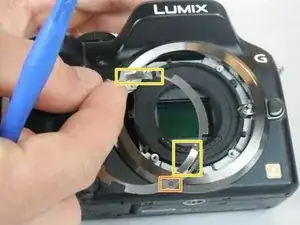

    • Use your hands or the thin plastic opening tool to remove the external housing ring as well as the smaller internal ring underneath.

    • Keep in mind that the red dot should be on the left side of the face. A small hole on the right side keeps the external ring centered on the lens release button. A similar hole on the left side keeps the internal ring centered underneath.

    • The three short depressed sections of the internal ring should be facing into the camera during reassembly.

  3. LK5D4FhmWerYMZIZ
    LK5D4FhmWerYMZIZ
    GPCfNOxMZ3cnOhfX

    • Use the Thin Plastic Opening Tool to release the black connection ring.

    • Insert the tool underneath the right side of the black ring to improve leverage.

    • Let the ring fall forward to reveal its underside.

    • Take care not to disconnect the filament connections from the camera as they can be very difficult to reconnect.

  4. hNUCBK1ykdQnIN2P
    hNUCBK1ykdQnIN2P
    RA5xVAUIOMGGeLE6

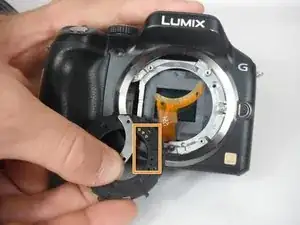

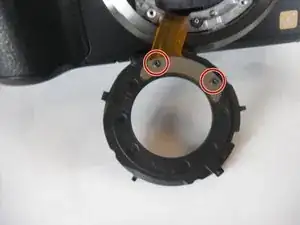

    • Remove the two 2.7mm J000 phillips screws from the mount ring which connect to the ribbon of filament connections.

    • There are many small golden-colored springs and rivets within the black ring connector. They will fall out if held upside down. When reassembling, they should be in contact with the gold plating of the filament connection.

Conclusion

To reassemble your device, follow these instructions in reverse order.
