Panasonic ARC ES-LT3N Battery Replacement

Written By: Andrew Trainor
  • Comments: 1
Panasonic ARC ES-LT3N Battery Replacement

Difficulty

Easy

Steps

7

Time Required

10 minutes

Introduction

This repair guide will show you the best step by step procedure of how to replace your battery in your Panasonic ARC ES-LT3N. The process is fairly easy and you only need a one tool!

  1. WxhjwqGoS2MSmIWF
    WxhjwqGoS2MSmIWF
    PdUCxHwT4RLWJP1Y

    • Flip the razor over so the back is facing you.

  2. IpctDaWlpRnVEsit
    IpctDaWlpRnVEsit
    kEExYTQJPmKaiQVg

    • Using a Phillips #00 screwdriver, remove the 6 mm screw just above the charger port.

  3. 2cQPklUCSBI2DZpW
    2cQPklUCSBI2DZpW
    XV3qL2MNiJ1FaLSx

    • Slide the plastic cover at the bottom of the razor downward to remove.

  4. yiEZpgapIQfQm6ud
    yiEZpgapIQfQm6ud
    fhfnesUHbFqAjNuZ

    • Lift up the rear casing from the bottom of the razor.

    • This may require you to gently pry it apart with you fingers.

    • Lift up the rear casing from the sides of the razor.

    • Pull rear casing up and off razor.

    • Be careful not to break any plastic!

  5. Q3fQO1jYoq4btnEA

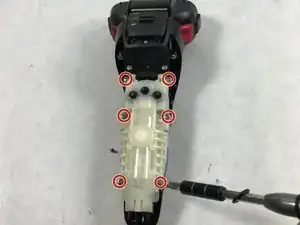

    • Using the Phillips 00 driver bit, remove six screws (12mm) from the battery case.

  6. XbAKDLkeN4MIBWdl

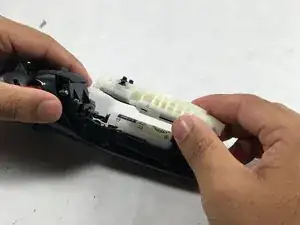

    • Remove battery case.

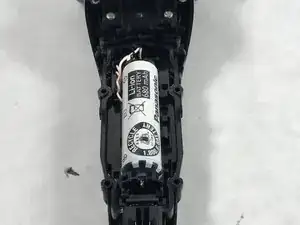

  7. pwXYTCRdjG3IXICK
    pwXYTCRdjG3IXICK
    judAGGSJUPIwZPYi

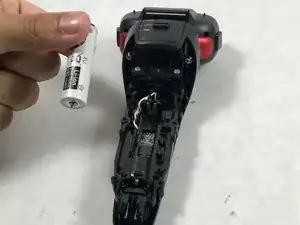

    • Remove old battery by lifting the battery up and left.

    • There are plastic brackets holding the battery on the right. Removing up and left ensures that the brackets will not be damaged and the battery will not come loose.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Andrew Trainor

Member since: 06/03/17

648 Reputation

One comment

Where does one actually find the replacement batteries though?

WooKstah -
