Panasonic ARC ES-LT3N Back Casing Replacement

Written By: Andrew Trainor
  • Comments: 0
Panasonic ARC ES-LT3N Back Casing Replacement

Difficulty

Very easy

Steps

4

Time Required

5 minutes

Introduction

This repair guide will show you the best step by step procedure of how to replace your back casing on your Panasonic ARC ES-LT3N. The process is very easy!

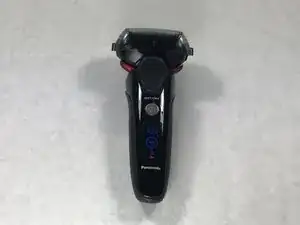

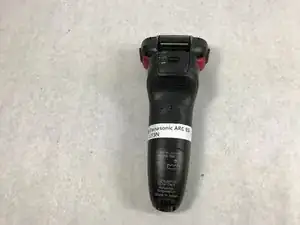

  1. WxhjwqGoS2MSmIWF
    WxhjwqGoS2MSmIWF
    PdUCxHwT4RLWJP1Y

    • Flip the razor over so the back is facing you.

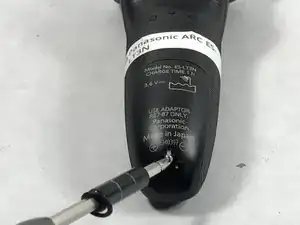

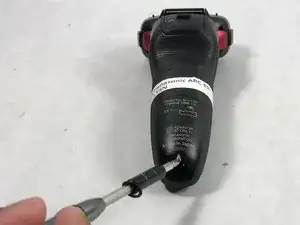

  2. IpctDaWlpRnVEsit
    IpctDaWlpRnVEsit
    kEExYTQJPmKaiQVg

    • Using a Phillips #00 screwdriver, remove the 6 mm screw just above the charger port.

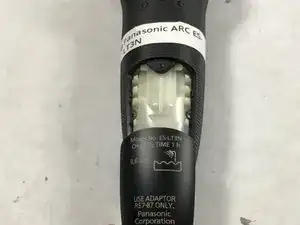

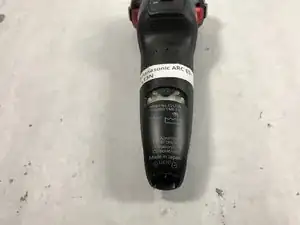

  3. 2cQPklUCSBI2DZpW
    2cQPklUCSBI2DZpW
    XV3qL2MNiJ1FaLSx

    • Slide the plastic cover at the bottom of the razor downward to remove.

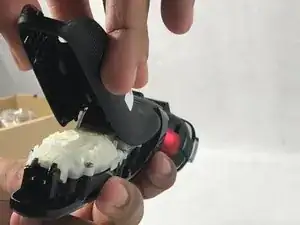

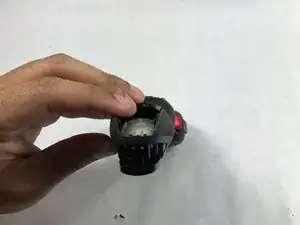

  4. yiEZpgapIQfQm6ud
    yiEZpgapIQfQm6ud
    fhfnesUHbFqAjNuZ

    • Lift up the rear casing from the bottom of the razor.

    • This may require you to gently pry it apart with you fingers.

    • Lift up the rear casing from the sides of the razor.

    • Pull rear casing up and off razor.

    • Be careful not to break any plastic!

Conclusion

To reassemble your device, follow these instructions in reverse order.
