Oster 6329 Bread Grabber Spring Replacement

Written By: Isaac Williams

Comments: 1

Oster 6329 Bread Grabber Spring Replacement

Difficulty

Very difficult

Steps

9

Time Required

25 - 30 minutes

Introduction

This repair is challenging because the wire that acts as the spring is difficult to bend into the correct shape.

Tools

Step 1

cas6Ym1bsyZhOhvc

cas6Ym1bsyZhOhvc

esiNZOrcYVRyOVpK

Using the Phillips-head #2 screwdriver, unscrew the three 1cm Phillips-head screws on the plastic base of the toaster to separate the outer metal shell from the plastic base.

Step 2

fKH2aIprsLIjj3rX

Push the plastic push-down handle down and pull the plastic handle straight from metal arm.

It really helped me to use a heat gun to warm up the handle a tiny bit.

Step 3

tMLHBlhRqrivVWLZ

Loosen the outer metal shell from the plastic base by holding the plastic base while pulling up on the metal shell.
Only lift the outer shell a little so as not to disconnect the cables that connect the circuit board.

Step 4

jqfAdXcEnHW2Yllg

jqfAdXcEnHW2Yllg

BVQOZSvaw6JUYIcR

Disconnect the cable clips from the circuit board using the tweezers to free the outer metal shell from the plastic base.

Step 5

KIuoITDCUvQcpOYH

KIuoITDCUvQcpOYH

2RG2cP3tBtfSSYN2

Lift the top outer metal shell.
Carefully lift the outer metal shell at an angle so as not to damage the components in the front of the toaster.

Step 6

xqE6Iv1oojJX5u3F

Press down on the toaster handle to access to the grabber spring located behind the large metal plate.

Step 7

Tt1aQTQW4RRJETTJ

Locate the grabber spring.

Step 8

c3ZDDfnkCCkIrvU5

Use the large needle nose pliers to unwind the grabber spring from one side of the carriage to remove.
Repeat this step for the opposite side.

Step 9

Ajj5HY6mQ4bVowht

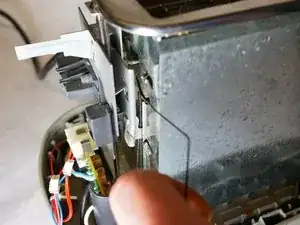

Remove the old spring from the toaster unit to insert new.

Conclusion

To reassemble your device, follow these instructions in reverse order.
