Oster 3905 Lever Spring Replacement

Written By: Sydney Alcaraz
  • Comments: 2
Oster 3905 Lever Spring Replacement

Difficulty

Moderate

Steps

16

Time Required

45 minutes

Introduction

This guide will show you how to replace the lever springs on your Oster 3905 toaster.

  1. wQvKW2mnRMOyl3WZ

    • Firmly grip your hand around the slot lever.

  2. 3uKar4sLpjZBpNSY

    • Stabilize the toaster by placing your hand on top.

  3. dUtdXOudieotxRcc
    dUtdXOudieotxRcc
    B6mndQPAALOB4Ogk

    • Forcefully pull the slot lever away from the toaster by keeping parallel to the table.

  4. 3HyiogBBxXVkhVDi

    • Both slot levers can be removed.

  5. htXNCWCDFHtO3nal

    • Place the toaster upside down so the bottom is facing the ceiling.

  6. dqTTAImhTGblZi3R
    dqTTAImhTGblZi3R
    21RK2aRLQb5Urjnu

    • Take off both rubber feet using a small metal spudger.

    • Wedge a spudger under the feet and pull up to pop off.

  7. 2kET52AqcBAhC3Cs

    • Use a PH#2 screw bit to remove eight 12mm screws that are located around the perimeter.

    • There are two screws under the rubber feet.

  8. df1xAxTxDD3hivQm

    • Place the toaster right side up.

  9. llSMmqURAJZfBEPc
    llSMmqURAJZfBEPc
    LrOkSN4dLGGXloJY

    • Grab the outer shell firmly and pull up towards the face of the toaster.

  10. L2s1ec4aHCDcGxMv

    • For this part, you might need to wiggle the toaster to get the outer shell off.

    • The shell will not completely come off until the motherboard is removed in the next step.

  11. c1MDVCIlIpSDXLJp
    c1MDVCIlIpSDXLJp
    2C5fCOiEenQTFF31
    R5FXynN11Jy1sjQ4

    • Use a J1 screw bit to unscrew eight 8mm screws from the motherboard.

  12. nHAOjlI1yeeSikl2
    nHAOjlI1yeeSikl2
    N6wCWQLunBWaPrQ3

    • Take out the grey “cancel” and “bagel” buttons from the shell.

  13. DjDGtlk6W1hfWKkJ
    DjDGtlk6W1hfWKkJ
    LwMOscLmj2ZYuQAf

    • Use the plastic opening tool to remove the top metal panel by prying the 4 top metal tabs upwards. They will be able to slide through the openings and be pulled upwards.

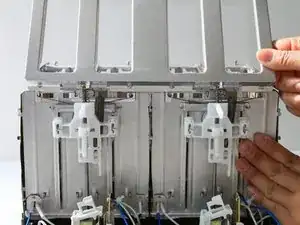

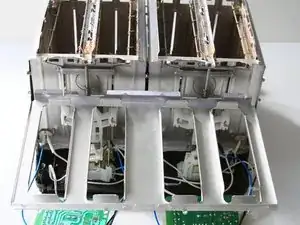

  14. dnpKPhoZWwpiIRtw
    dnpKPhoZWwpiIRtw
    pEs4ZqiDanjvYBNT

    • Once the top metal panel is unhooked, lift and let it hang off the side of the toaster.

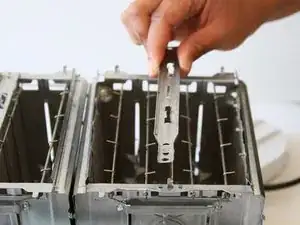

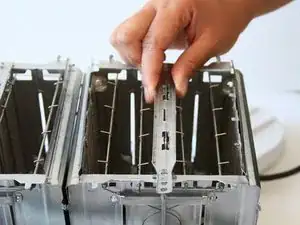

  15. 3VdeqeWwQNf34IfX
    3VdeqeWwQNf34IfX
    SdSxZRHxBlZUoOJs
    SJmuowrUgcLIIuNq

    • Use a metal spudger to pry the 8 tabs upwards along the metal that separates the two slots.

    • Pull the metal spacer upwards to release from the toaster.

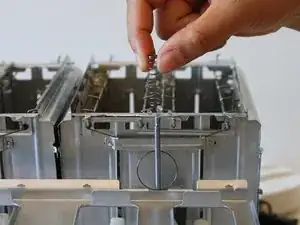

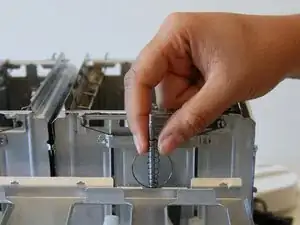

  16. pnfnKBLhy5Ub4tms
    pnfnKBLhy5Ub4tms
    FhHSK3TXTlLxeLiy

    • Remove the spring wrapped around a metal rod at the front of the toaster, located behind the white plastic lever holder.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Sydney Alcaraz

Member since: 12/09/16

601 Reputation

2 comments

Where's the fix?

D Unger -

Yeah. You just remove the spring? And then what? Surely removing the spring is not the fix.

kryshu -
