Introduction
Use this guide to remove the side panel of the Olympus Stylus Tough-8010 camera.
-
-
Remove the three screws (3.2mm) from the front panel using a T-6 screwdriver.
-

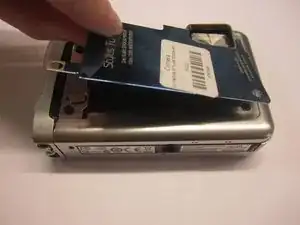

Take off the smaller front panel cover.
-

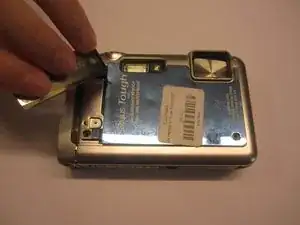

Carefully remove the larger front cover.
-
-
-
Remove the top two screws (4.1mm) using a #000 Phillips head screwdriver.
-
Remove the two screws (7.9mm) near the control pad. Set metal connector aside.
-

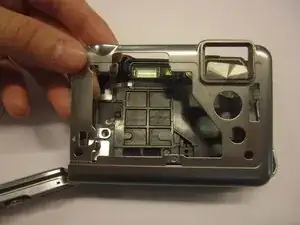

Remove the side panel casing.
-
-
-
Using a #000 Philips head screwdriver, remove the two screws (4.1mm) on the right side of the camera.
-

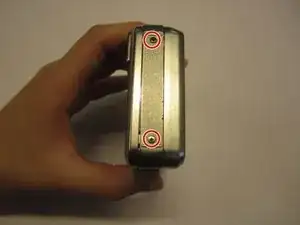

Remove the two screws (4.1mm) from the bottom of the camera.
-
Remove the single screw (3.2mm) from the front of the camera.
-
-
-
Carefully remove the front panel piece.
-

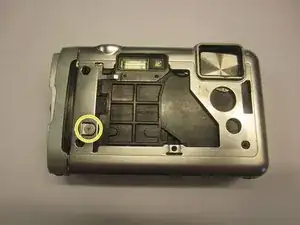

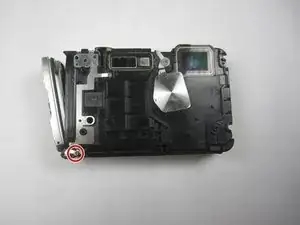

Remove the screw (7.9mm) from the bottom left hand corner using a #000 Phillips head screwdriver.
-
-
-
Slightly bend the metal that is covering the side panel axle.
-

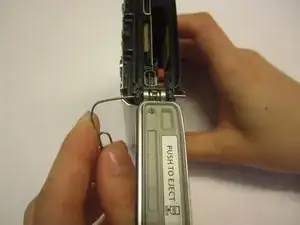

Using a paperclip, completely push out the metal bar that holds the side panel to the camera.
-

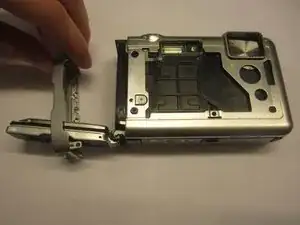

Remove the side panel door.
-
To reassemble your device, follow these instructions in reverse order.
