Introduction
This guide will show you how to replace the external lens assembly on the Olympus E-PL7.
We highly suggest you use a magnetic project mat or an organization tray. This camera has many different types of screws and keeping them organized is key to proper reassembly.
-
-
Turn the camera upside down.
-
Push the grey tab to the right to open the battery compartment.
-
Pull out the battery.
-
-
-

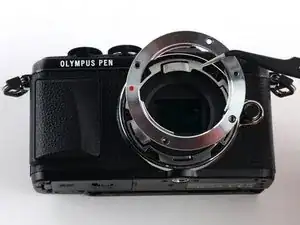

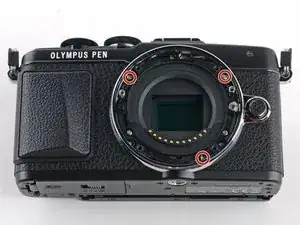

Use a Phillips #00 screwdriver to remove the three 5 mm screws.
-

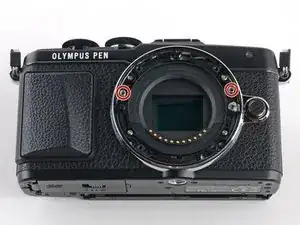

Remove the two 4 mm Phillips screws.
-
-
-

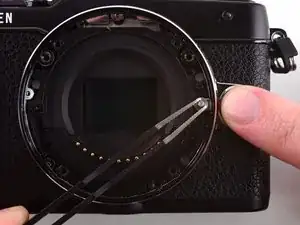

Press and hold the lens release button while using tweezers to remove the lens hook.
-

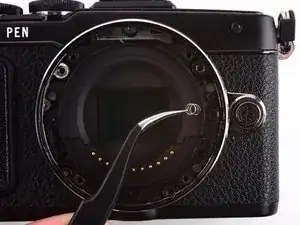

Use tweezers to remove the spring underneath the lens hook.
-
Conclusion
To reassemble your camera, follow these instructions in reverse order.
