Olympus Pen E-PL7 LCD Screen Replacement

Written By: Kelsea Weber
  • Comments: 12
Olympus Pen E-PL7 LCD Screen Replacement

Difficulty

Moderate

Steps

10

Time Required

No estimate

Introduction

Is your LCD Screen cracked or unresponsive? Use this guide to replace it and get back to taking awesome photos.

We highly suggest you use a magnetic project mat or an organization tray. This camera has many different types of screws and keeping them organized is key to proper reassembly.

  1. 22oxLFC5aIcoQXee
    22oxLFC5aIcoQXee
    Np1LC2lTUq2SmejQ

    • Turn the camera upside down.

    • Push the grey tab to the right to open the battery compartment.

    • Pull out the battery.

    • The battery is not shown in these photos.

  2. OoQEJfCXFnNi65ta

    • Use a Phillips #00 screwdriver to remove the three 2.3 mm screws from the base of the LCD screen.

  3. EsSEVM2CZKmbwjIJ
    EsSEVM2CZKmbwjIJ
    HekigUYukFEBNLr2

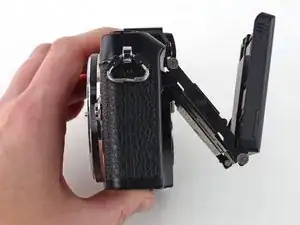

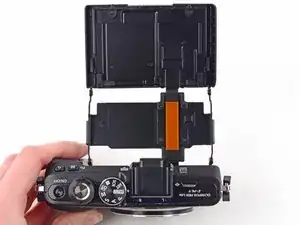

    • Fully extend the LCD assembly.

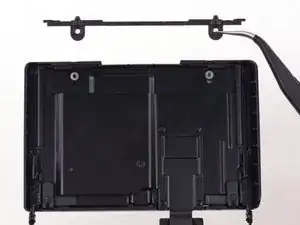

  4. rqvDMRiIHpLRPSXL
    rqvDMRiIHpLRPSXL
    nVUPO1iHHRj2O6Hd
    YZgRhETdiECTEwwY

    • Remove the two 2.2 mm Phillips screws located on the back of the LCD screen.

    • Use tweezers to remove the top LCD bracket.

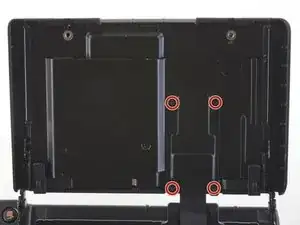

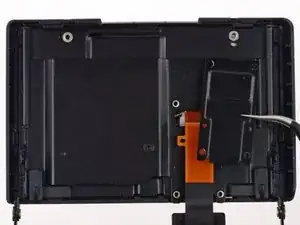

  5. AIWLyDAlTqDbVakU
    AIWLyDAlTqDbVakU
    UCamP5QWVj1iqSj6
    IIFTpFMHiOUaTxwi

    • Use a Phillips #00 screwdriver to remove the four 1.4 mm screws from the back of the LCD screen.

    • Remove the LCD ribbon cable with a pair of tweezers.

    • The cover may fall off after the screws have been removed.

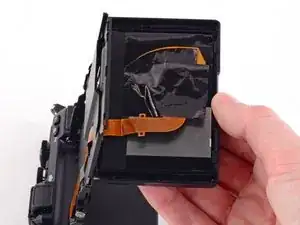

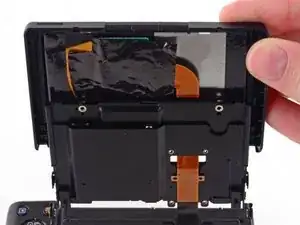

  6. iRVwhGjRPTfPutGt
    iRVwhGjRPTfPutGt
    YNUNgpZE3QcyT3HF
    d5U3KkVXHHaIQcnE

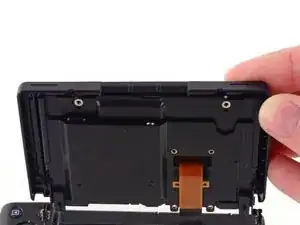

    • Carefully lift the LCD screen up and away from the assembly.

    • Do not attempt to fully remove the screen, as it is attached to the assembly by a ribbon cable.

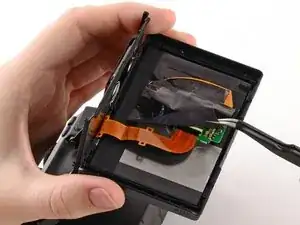

  7. a5nMJHQMCIEde3vJ
    a5nMJHQMCIEde3vJ
    1VjjjbPTLmyk6roX

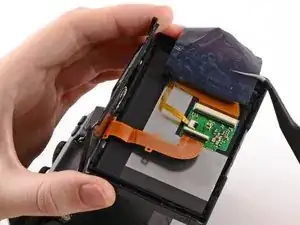

    • Use tweezers to peel back the plastic cover.

    Be very careful i destroyed the wrong cables in that step.

    christoph hütt -

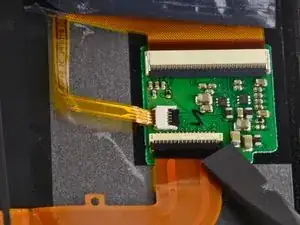

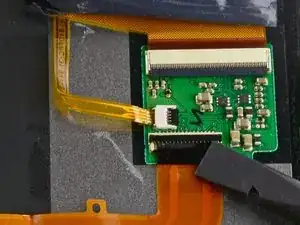

  8. W4jbpsEDbxKlvtvG
    W4jbpsEDbxKlvtvG
    nmEyLUUT5NGATNvZ
    l2IhRKDN2nAqViCc

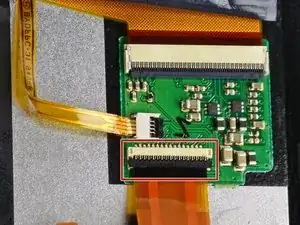

    • Use a spudger to flip back the black bar on the LCD Ribbon ZIF connector.

  9. AKAmvgkq6lBTbunw
    AKAmvgkq6lBTbunw
    JOEXn53vrqdZdlMr

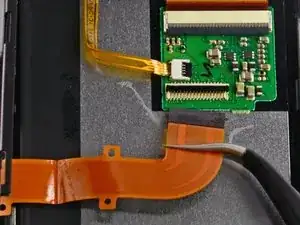

    • Gently pull the ribbon cable out with tweezers.

  10. ksC4tdGoIQhh3SJ6

    • Remove the LCD Screen.

    Thank you so much. Just fixed my cam!

    Ingo -

    There is more to it than shown here. You must remove the circuit board from the back of the old LCD screen, unplug those ribbon cables, transfer the circuit board to the new screen, and plug in the cables.

    Steve Reynolds -

Conclusion

To reassemble your device, follow these instructions in reverse order.
