NuVision 10.1 Atom Battery Replacement

Written By: Carly Daniele
  • Comments: 0
NuVision 10.1 Atom Battery Replacement

Difficulty

Difficult

Steps

10

Time Required

30 minutes

Introduction

Make sure to be very careful when handling the battery, lithium batteries are prone to exploding when bent or punctured. If the device is experiencing a short life span or any other issues regarding the battery, follow this guide to replace the battery.

  1. TB1BDKXkWYV5IocZ
    TB1BDKXkWYV5IocZ
    KkU2n2sfPkJYLIrK
    W2qyYAO5BDoEvpmO

    • Turn the device screen side down.

    • Carefully remove the back piece with the iFixit opening tool.

  2. ivBPVqujExTfcbN1

    • Remove the yellow tape covering the motherboard gently with your fingers.

  3. LUCREO1G4YyRdiUV
    LUCREO1G4YyRdiUV
    GO4QmhSFQrjYyYuo
    2XygSFDBSUDaNJ3F

    • Pull the camera plug upward and away from the motherboard with your fingers.

    • Gently pull the camera from the device. The camera is held by tension.

  4. B4tDJROgtZTLIbgv

    • Carefully remove silver tape with your fingers.

  5. pNsupJxsFWvdqrZ4
    pNsupJxsFWvdqrZ4
    H1xMN4BpoOVtxD65

    • Remove speakers gently using your fingers, they pop out easily.

    • Disconnect cords attached to the speaker from white pod.

  6. WcojB4xTkkixhU42

    • Disconnect the press-fit black and red curly wire from where it connects on the motherboard.

  7. mux1d3fsgwxJ16rh
    mux1d3fsgwxJ16rh
    mSSkh4LKGZWk2QMt
    Rl3cJKXkwQRoJQQ3

    • Gently remove the battery's three ZIF connectors from the motherboard. Use your fingers.

    • Be careful not to puncture the battery.

  8. ELiQKRPCYSN4dcwq
    ELiQKRPCYSN4dcwq
    JWmk4yMXs3F1xo62

    • Disconnect the battery's bundled cable connector from the motherboard with fingers.

  9. HX1ZR4HDBIGraGge
    HX1ZR4HDBIGraGge
    YQaPxy6lnBsRUSWn
    IkQoCIOQlOaiAM5y

    • Remove the four black 3.32mm screws on the corners of the motherboard using the Phillips #000 screwdriver. The motherboard should come out easily.

  10. lkUbh4rh4RnexpQS
    lkUbh4rh4RnexpQS
    M3fhvVtwLrFJXfIq
    WVEbdUPZqCHwRQUx

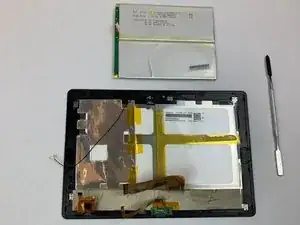

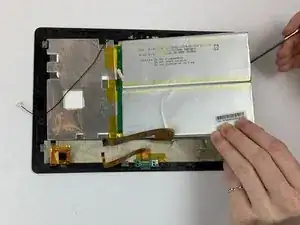

    • Pry the battery away from the display screen gently using a nylon spudger or the plastic opening tools.

    • Using a metal spudger may bend or puncture the battery. Lithium batteries are prone to explode.

    • There is a lot of adhesive, take your time and be careful.

Conclusion

To reassemble your device, follow these instructions in reverse order.
