How to Replace Nikon Coolpix S51c LCD Screen (liquid crystal display)
This is a screen repair for damage or cleaning purposes. Be sure the new screen is compatible with model. To avoid risk of injury, do not not touch interior if it has been damaged. Store equipment out of reach of children. STOP the repair if product starts smoking.
-
-
Open the battery door by sliding it in the direction of the arrow to reveal a hidden screw on the opposite side of the orange lever.
-
Remove this screw using a Phillips #00 screwdriver.
-
-
-
Rotate the camera to find the side panel with the lanyard attachment.
-
Detach the side panel by the lifting bottom corner slightly with the spudger.
-
-
-
Lift the back cover, being careful not to rip the orange cables between the camera and the back cover.
-
-
-
With the back cover lifted, lift the black flap that connects the ribbon to the motherboard with the spudger and carefully remove the back cover.
-
-
-

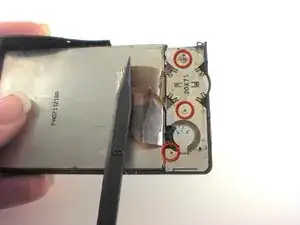

Take out rectangular component on the side where the screws were.
-

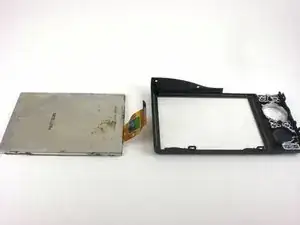

Pry apart screen from back casing using the spudger.
-
To reassemble your device, follow these instructions in reverse order.
