Nikon Coolpix S3100 Camera Disassembly

Written By: Jorge
  • Comments: 1
Nikon Coolpix S3100 Camera Disassembly

Difficulty

Moderate

Steps

9

Time Required

30 minutes - 1 hour

Introduction

If you happened to drop camera into dirt or sand, this guide will explain to you on how to clean it.

  1. SKNO1YXPcAinKJeU
    SKNO1YXPcAinKJeU
    LFfHD2IXXLh2OB2S
    AN5UJjGsWJXhLFR2

    • Remove 8-2.46 mm screws from both sides and bottom of camera using a #000 Phillips screwdriver.

    • Remove 2 screws from left side. (picture 1)

    • Remove 4 screws from bottom. (picture 2)

    • Remove 2 screws from right side. (picture 3)

  2. vVgbCRRrGtMRRWnX
    vVgbCRRrGtMRRWnX
    bdgEGv5Am2du1FOA

    • Remove black cover pulling up with left thumb. Hold silver cover with right thumb.

    • Remove silver cover lifting up with left thumb. Hold the camera with right thumb.

    • Once internal circuit board is exposed, the red and blue wire terminals at top center can provide a nasty shock from the charged flash capacitor (silver can to left of terminals). BE CAREFUL!

  3. 6sccMfYVvvgIKKKW
    6sccMfYVvvgIKKKW
    4jGKXHrlmQoXoBNf

    • Remove 2-2.10mm screws in the front of the camera using a #000 Phillips screwdriver.

    • Remove the two screws.

    • Gently pull up to detach the frame. (picture 2)

  4. P4uKEgxIIuMnmMyA
    P4uKEgxIIuMnmMyA

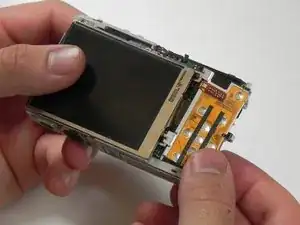

    EapWpMQ2kBEalIYR

    • Remove 2-2.10mm screws using a #000 Phillips screwdriver.

    • Gently pull the orange board to the right. (picture 2)

  5. UtJbbUX1y4aCuoAh
    UtJbbUX1y4aCuoAh
    kqYHNxPeJqG4jGQB

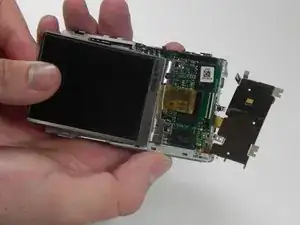

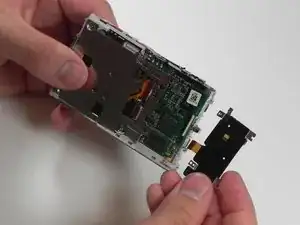

    vmIuZXEiWAMSAnFU

    • Lift screen up holding the corners.

    • Gently pull to the left to release from ZIF connector. (picture 2)

    • Gently pull the orange board to the right. (picture 3)

  6. 2XKXU3AIefnkgyyY
    2XKXU3AIefnkgyyY
    oM2iNXgSTKyGHvW5

    • Remove 4-2.10mm screws using a #000 Phillips screwdriver.

    • Gently pull the shutter up. (picture 2)

  7. kiZApGoWiPelIx2E
    kiZApGoWiPelIx2E
    b4ijHIPVHbKnXo5m

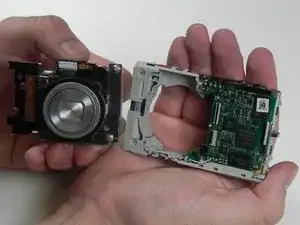

    • Lens is now separated from body.

    • Remove 3-2.12mm screws using #000 Phillips screwdriver.

  8. O1myAU3gmRsVjjgX
    O1myAU3gmRsVjjgX

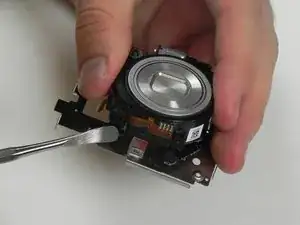

    JnWktC5tyHtVYfvZ

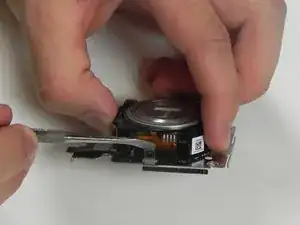

    EkBEqO4PNa6SA65S

    • Use a nylon or metal spudger to release the lens.

    • Repeat step 4 to the opposite side of the lens. (picture 2)

    • Lens is now separated from metal.

  9. TyFUGcIgtEDKImXh
    TyFUGcIgtEDKImXh

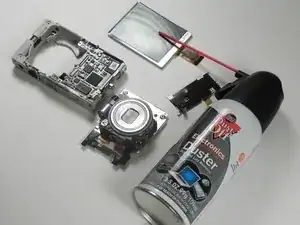

    POhTlUI56Jbw5ekp

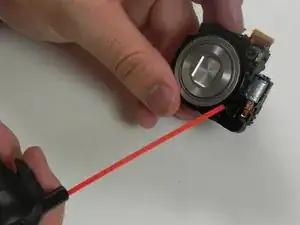

    hIaNUFiymqvSj3ZO

    • Once you have all the parts separated, start cleaning them with an air compressor bottle. (as shown)

    • Using the provided straw, start spraying the parts. (pictures 2 and 3)

Conclusion

To reassemble your device, follow these instructions in reverse order.
