Nikon Coolpix S3100 Camera Battery Replacement

Written By: Jorge
  • Comments: 0
Nikon Coolpix S3100 Camera Battery Replacement

Difficulty

Very easy

Steps

4

Time Required

10 minutes

Introduction

In order for the Nikon Coolpix S3100 to even function, you must install a battery successfully using this step-by-step guide.

  1. bw1oPEEiZD4lDeAN

    • Place camera with the LCD screen facing you.

  2. JObgmoBH5Yfe1MZy
    JObgmoBH5Yfe1MZy
    cvDo1Aj2DpW1XrNG

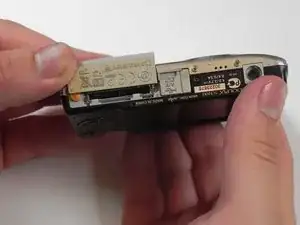

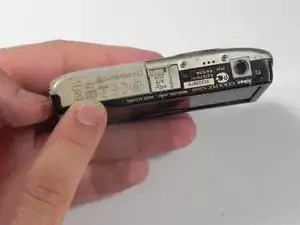

    • The "Card/Batt" compartment should be located on the left side.

    • Slide it away from you. (picture 2)

  3. SRPnvn2TdDbxUaDp
    SRPnvn2TdDbxUaDp
    GiKSnTITIXkGpWX5

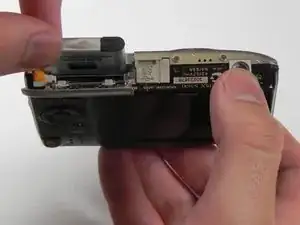

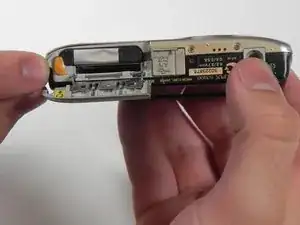

    • Slide the orange tab to release the battery.

    • The battery will spring up. Grab and replace.

  4. WYDYIIaCUwq4tOOe
    WYDYIIaCUwq4tOOe
    iHyP2iqaKwTg6O6l

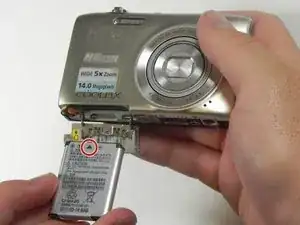

    • Insert new battery with the arrow facing you or the front of camera.

    • Battery replacement is a Lenmar DLZ319N.

Conclusion

To reassemble your device, follow these instructions in reverse order.
