Nikon Coolpix P530 Battery Replacement

Written By: Alan Weihe
  • Comments: 3
Nikon Coolpix P530 Battery Replacement

Difficulty

Easy

Steps

4

Time Required

30 seconds

Introduction

Continual usage can drain the Nikon Coolpix P530’s battery shortening its lifespan. This guide utilizes a step by step approach on changing the battery in your device. Before following this guide, ensure that the Nikon EN-EL5 rechargeable lithium-ion battery or suitable equivalent is being used during the replacement.

  1. Yt6PZvfWZtOdhIBJ

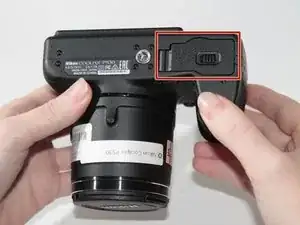

    • Identify the battery chamber found at the bottom of the device.

    • Ensure the camera is turned off before conducting any maintenance on the device.

  2. sYxyP1yT6K5cufyR
    sYxyP1yT6K5cufyR
    QVxQLYWv51QFOlJj
    xfni1Hy5YaxndvW6

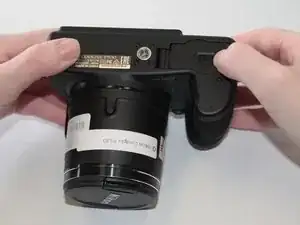

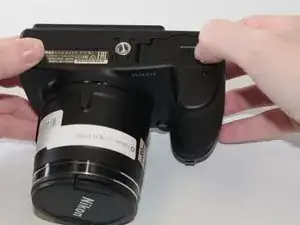

    • Slide the switch to the left to open the battery chamber using your fingertip or plastic opening tools.

    • The spring loaded battery chamber door will swing open after the switch is moved.

  3. KYBSDoYA46YoufP5
    KYBSDoYA46YoufP5
    SSnZVxJNYsgRxSfA
    nO5UPLDQT4eSjIEB

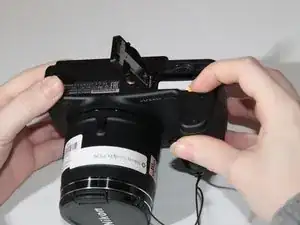

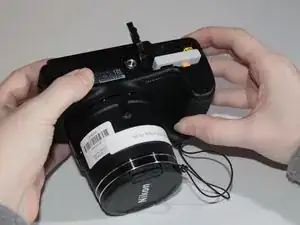

    • Depress the yellow spring loaded tab holding the battery in place using your fingertip or plastic opening tools.

    • After the yellow tab is depressed, the battery should partially eject from the camera.

  4. VtXWNA1vJhRUSLaV
    VtXWNA1vJhRUSLaV
    pGLA4YnPy4qkQ5EN

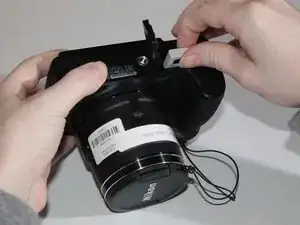

    • Gently remove the battery from the chamber.

Conclusion

To reassemble your device, follow these instructions in reverse order.
