Nikon Coolpix 775 Motherboard Replacement

Written By: Suketu Patel
  • Comments: 0
Nikon Coolpix 775 Motherboard Replacement

Difficulty

Moderate

Steps

11

Time Required

15 - 50 minutes

Introduction

Do you think your motherboard is fried? This guide can help you walk through the removal of this motherboard for the Nikon Coolpix 775.

  1. iGUq6MW6dYOuqivE
    iGUq6MW6dYOuqivE
    PWEsfkNBLsKAfy6I
    NXtMKMObPYDQWx6S

    • Flip the camera, so the bottom is facing up.

  2. KHShGFNai4ghTVx3
    KHShGFNai4ghTVx3
    jlKm5JLErKdSve1k

    • Slide the gray latch to the open "pac-man" symbol.

  3. UTqSIKJMiJeckpfF
    UTqSIKJMiJeckpfF
    E5OyLOfrUDCJSQgL
    yPJK3CgIiZbPXDKo

    • Flip up the cover and remove the battery inside the slot.

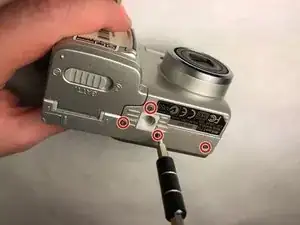

  4. 1q2JwAVstKYmCnGA
    1q2JwAVstKYmCnGA
    IYepuTyUJGMALCmj
    3IKgRICZlwhat4RJ

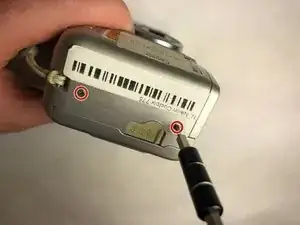

    • Unscrew the eight 4mm long JIS #00 screws from the bottom, right side, and the left side.

  5. 3drgtq1beWUTReXo
    3drgtq1beWUTReXo
    1kAh2dIkMyhskD15
    5YYkQrWSyhKIbOwv

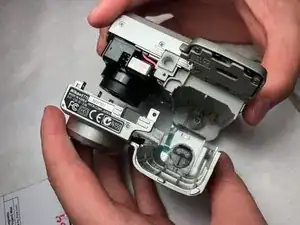

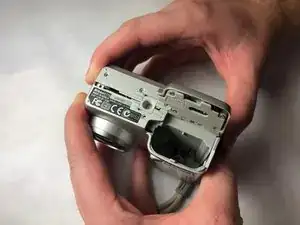

    • Grab the camera with both your hand from the front and the back.

    • Pull the two parts apart.

    • You may have to pull at different angles to get the two parts to separate, but make sure you don't pull too hard because there is a wire connection on the inside.

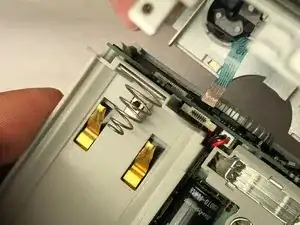

  6. Am1rSJqUGtQl6eZs
    Am1rSJqUGtQl6eZs
    BTCfNZyAFQDqJRvp
    4UZdioRVluibPYXW

    • Flip the camera back so you can see the top.

    • Pull the ribbon cable out of the socket connecting to the motherboard by using your hands or tweezers.

    • Be careful not to puncture or rip the ribbon cable.

  7. XwOHhgAmDjI1YPHB
    XwOHhgAmDjI1YPHB
    FgWGUfWBI6Yo6xl3
    cMJZ2GdXtRpJNrfE

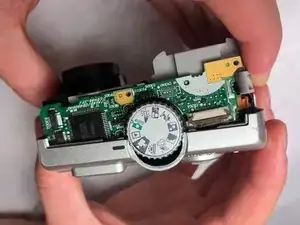

    • Look back to the top of the camera.

    • Flip up the tab that is exposed right by the dial using tweezers.

    • Release the ribbon to be able to separate the top part of the back of the camera.

    • Be careful not to rip the ribbon cable.

  8. 5yZrRQfBcXorWJdj
    5yZrRQfBcXorWJdj
    fAyecUn15KMAw1EM
    uZlAm33FVuZ2NWSc

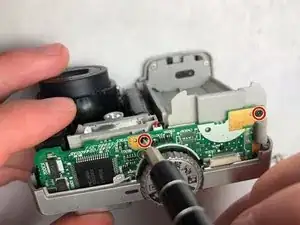

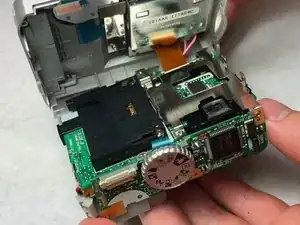

    • Look at the top side of the camera.

    • Unscrew the two 4mm Phillips #00 screws.

    • Unscrew the 2mm JIS #00 screw as well.

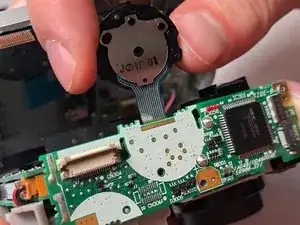

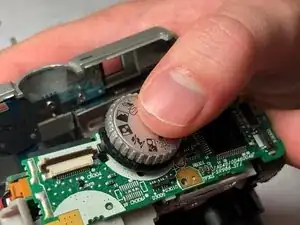

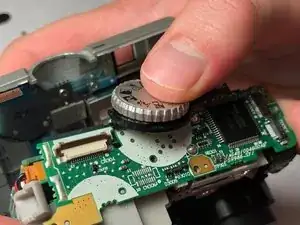

  9. LC25NlDFigDX5EHT
    LC25NlDFigDX5EHT
    VFZswtHLZWps5wgR
    RuWsMoQFTTpq2TQU

    • Push or slide the the top dial toward the backside of the camera to unclip from the motherboard.

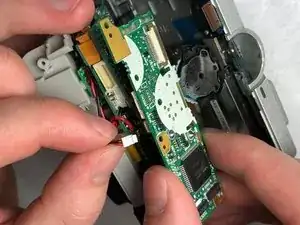

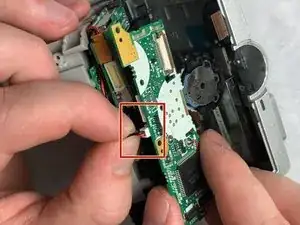

  10. wrMipWxEIXecSdbx
    wrMipWxEIXecSdbx
    AaFRXLOiDo2nrNZO

    • Pull the red and black wire out of the socket on the motherboard.

    • Pull motherboard up out of camera.

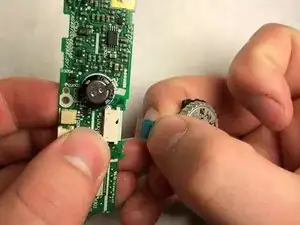

  11. HMsOUjBbabROHnSM
    HMsOUjBbabROHnSM
    QucgLoiUPUBvtWNH
    pePh6suCqwEmP1ZK

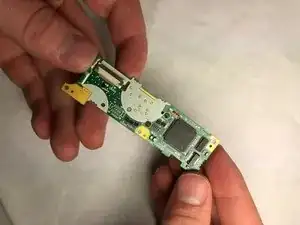

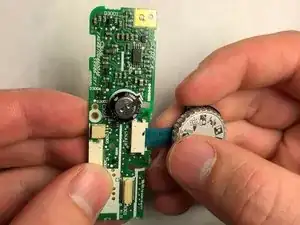

    • Pull the ribbon connected to the dial off the motherboard.

    • Be careful not to rip the ribbon cable.

Conclusion

To reassemble your device, follow these instructions in reverse order.
