Nikon CoolPix S600 Motherboard Assembly Replacement

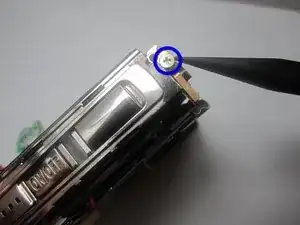

With the lens facing forward, remove the one 4.2 mm screw on the bottom right hand corner of the camera.

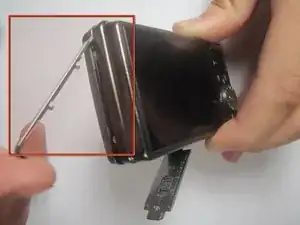

Remove the chrome side cover from the body of the camera.

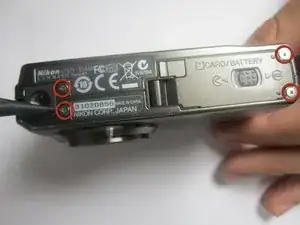

Remove the four 3.2 mm screws on the bottom of the camera.

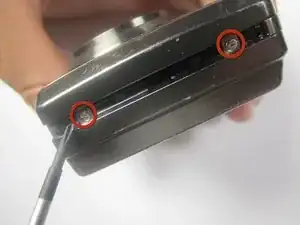

Remove the two 3.2 mm screws from the right side of the camera (with lens is facing forward)

Remove the one 3.2 mm screw from the left side of the camera (with lens facing foward)

Gently separate the back cover from the body of the camera.

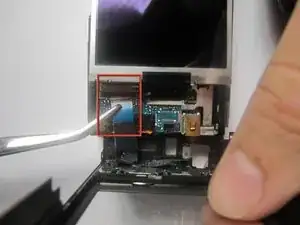

Use the tweezers to disconnect the ribbon from the circuit board.

Remove the one 2.6 mm screw from the left side of the camera (with the lens facing forward)

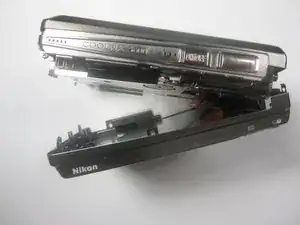

Gently separate the front cover from the body of the camera.

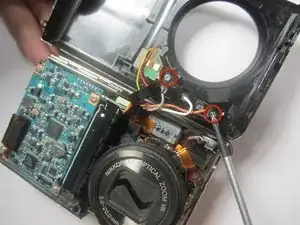

Remove the two 3.2 mm screws that hold the flash to the front cover.

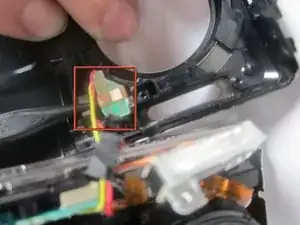

Use the Spudger to remove the copper colored light bulb clip.

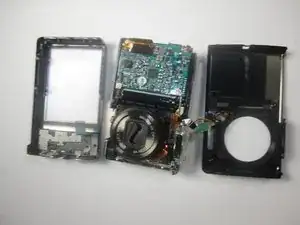

Remove the front cover entierly from the camera body.

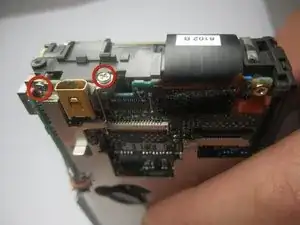

From the top view of the camera, remove the one 5.8 mm screw.

From the top view of the camera, remove the one 2.8 mm screw

Remove the three 3.4 mm screws from the back side of the camera.

Remove the two 3.4 mm screws from the side of the camera.

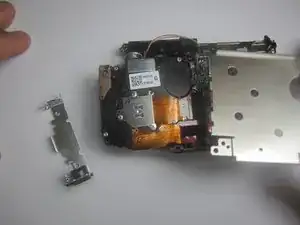

Separate the two metal body pieces from the rest of the camera.

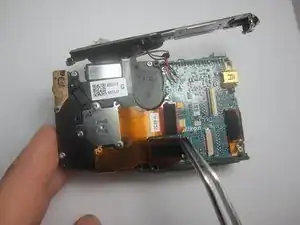

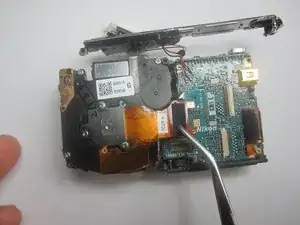

Gently remove the two ribbons connecting the lens to the mother board.

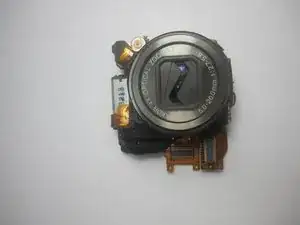

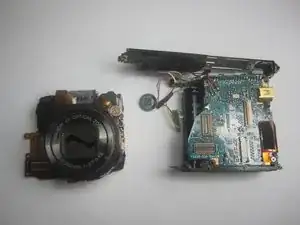

Gently separate the camera lens from the mother board.

The mother board is permanently fixed to the battery housing.
