Nikon CoolPix S5 Back Cover Replacement

Written By: Patty Richeson
  • Comments: 0
Nikon CoolPix S5 Back Cover Replacement

Difficulty

Easy

Steps

6

Time Required

5 minutes

Introduction

This guide is to be used to install the back cover in the event that it becomes damaged. A Phillips screwdriver will be needed to complete this installation.

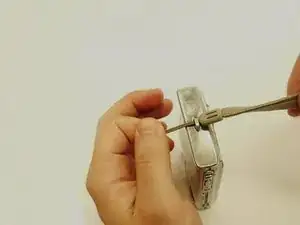

  1. YPuPry5uskBsWTRX

    • Remove the wristlet by untying the strap.

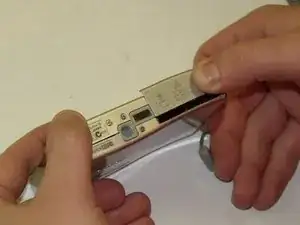

  2. 4qIlvUucC4lYQGf6

    • Open the SD/Battery cover.

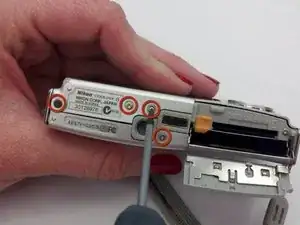

  3. MuUGtKVSXYbPrNLp
    MuUGtKVSXYbPrNLp
    MSNERUkGQByZvPYO

    • Remove the four screws adjacent to the SD/battery opening using a Phillips #00 screwdriver.

  4. 5yOJMNdWPaNWVx6C
    5yOJMNdWPaNWVx6C

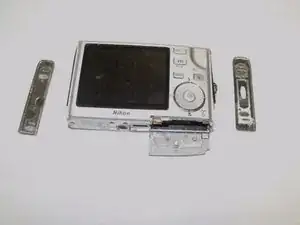

    rPXCPYUTjYRCaPQP

    • Remove the side paneling of the camera by prying it off with your hands.

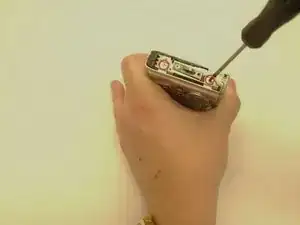

  5. fOEZeGI4gCZD6gVf
    fOEZeGI4gCZD6gVf

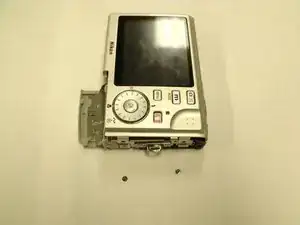

    WDZu3FEAJudjHJs5

    • Start on the wristlet side of the camera and use the #00 Phillips screwdriver to remove the two screws that hold the backplate in place.

    • Repeat the removal of the two screws on the other side of the camera.

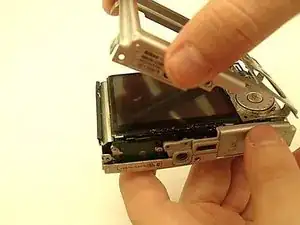

  6. CdPKXChHG3eT4JGp
    CdPKXChHG3eT4JGp

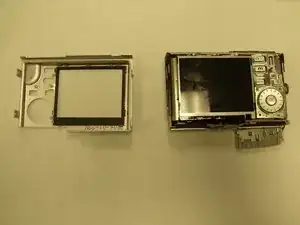

    IJChEJmmO12c2Xtx

    • Separate the back faceplate from the rest of the camera.

Conclusion

To reassemble your device, follow these instructions in reverse order.
