Introduction

Is your vacuum's battery not working or not holding a charge? The Moosoo XL-618A has a detachable battery pack for easy charging. However, the battery can become faulty. This is a guide on how to replace the battery pack of the Moosoo XL-618A.

  1. YPZggYwGfFRDyoDl
    YPZggYwGfFRDyoDl
    O612FgJGfd4bMXA3

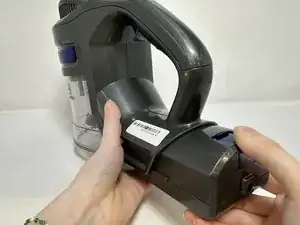

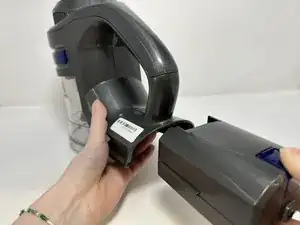

    • Press on the blue tab to release the battery pack, and pull.

  2. 6qi1lQT5beQX1AZJ

    • Remove each 15 mm screw from the four corners of the battery pack using a Phillips #1 screwdriver.

  3. YtBhWkVmX4ySBBdT
    YtBhWkVmX4ySBBdT
    eSJNNmWu54jRZeXX

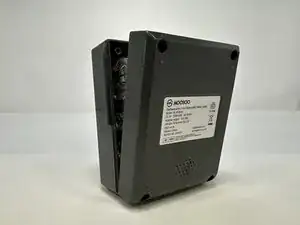

    • Remove the back piece of the battery.

  4. aVakKOyfLJbbcscR
    aVakKOyfLJbbcscR
    rVYnKoQxGjG3JT44

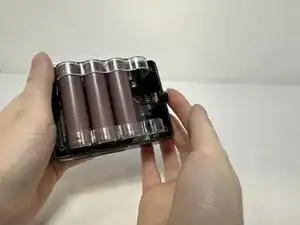

    • Find the wire connecting the battery to the charging port, locate the black tab at the top of the pack and pull the tab out first then the battery.

    • Be careful not to pull the wire out of the battery itself as this will further damage the battery.

Conclusion

To reassemble your device, follow these instructions in reverse order.
