Milwaukee Hex Impact Driver 2750-20 Chuck Drive Shaft Replacement

Written By: Charles Putnam
  • Comments: 0
Milwaukee Hex Impact Driver 2750-20 Chuck Drive Shaft Replacement

Difficulty

Moderate

Steps

4

Time Required

5 minutes

Introduction

The following repair guide shows how to remove and replace the chuck drive shaft in a Milwaukee Hex Impact Driver 2750-20.

  1. dJCYvuJXrEMCRdVY

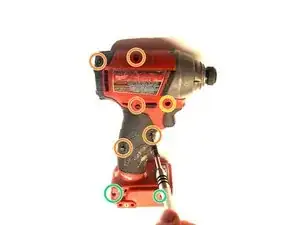

    • Remove the five T9 15.5 mm screws.

    • Remove the single T9 19.5mm screw.

    • Remove the two T9 37mm screws.

  2. FllNOyWWXk5Il6hX

    • Remove the drill casing to expose the drill's interior parts.

  3. xB2daIRkIvLXNmjV
    xB2daIRkIvLXNmjV
    6LKXfQ2WIvXu3XcY
    mBGyvZbUAEQjEHbr

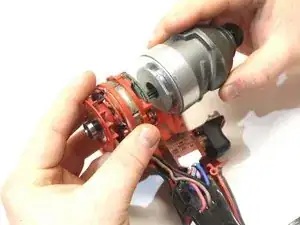

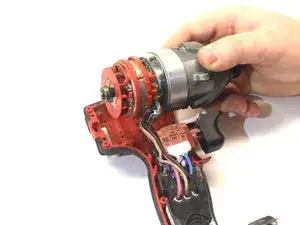

    • Pulling directly outward, remove the driver head from the motor assembly by picking it up out of the casing.

  4. RaWXtFEIYpvYFKuq

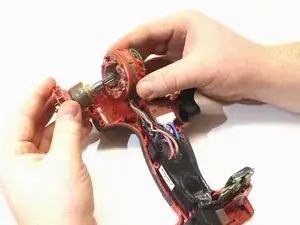

    • Remove the drive shaft assembly from the motor coils.

    • There will be resistance when removing the drive shaft as there is magnetism working against you.

Conclusion

To reassemble your device, follow these instructions in reverse order.
