Introduction

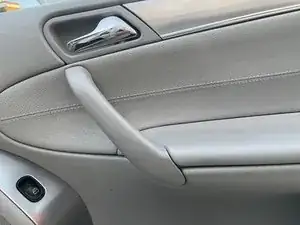

A common problem seen in the 2000s Mercedes-Benz is the pull handle breaks off fairly easily with time. This is the full replacement guide for the pull handle of a 2007 Mercedes-Benz c230. The inability to use the pull handle makes it awkward and difficult to close the car door once inside.
This guide can be followed with most Mercedes-Benz models, including: C-Class, W203, C230, C240, C280, C320, C350, C32 AMG, and C55 AMG.
Please make sure to open the window before starting because it will make the steps go by a lot easier.
WARNING: MAKE SURE CAR IS TURNED OFF BEFORE STARTING THE REPLACEMENT
-
-

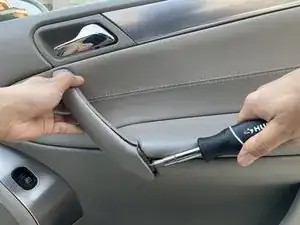

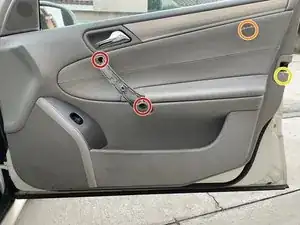

Use the T30 Torx Driver to remove the two screws located inside the pull handle.
-

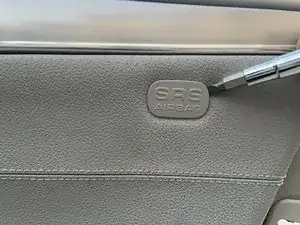

Use the T30 Torx Driver to remove the screw behind the SRS Airbag Badge.
-

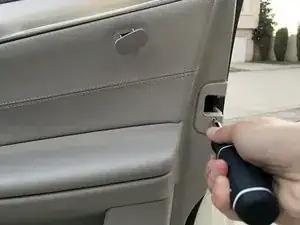

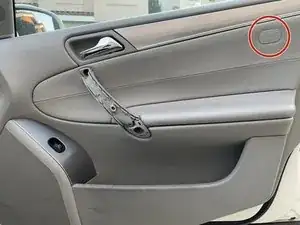

Use the T20 Torx Driver to remove the screw on the lock knob.
-
-
-

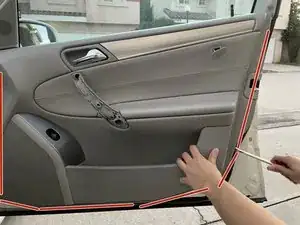

Use the Door Upholstery Remover to pry off the door panel from the metal door frame.
-

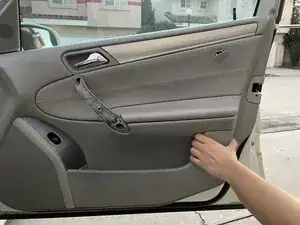

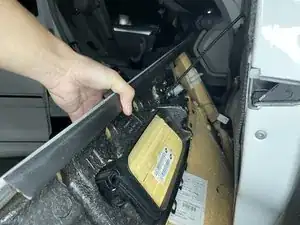

After separating the door panel from the metal, gently pull the door panel away from the metal door frame from the sides and bottom to loosen the nails.
-
-
-

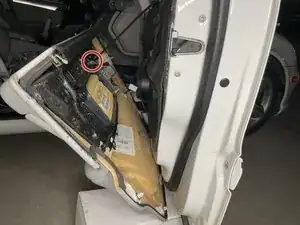

Pull the rubber off the wire of the door handle latch cable.
-
Pull off from fasten.
-

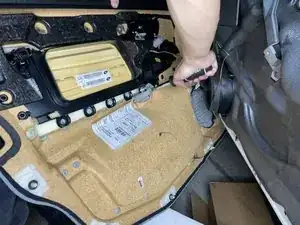

Unhook the door handle latch cable
-
-
-
Use Flathead 3/32" or 2.5 mm Screwdriver to press the clips on the side of the pull handle piece.
-

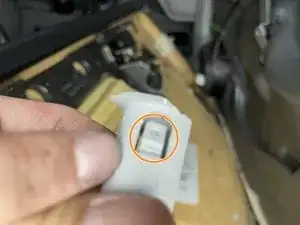

These are the clips.
-
-
-

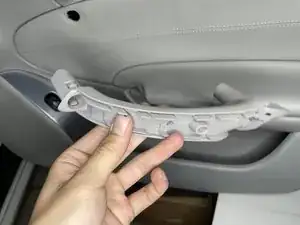

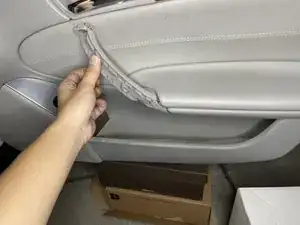

Place the new pull handle in place.
-
Use the T30 Torx Screwdriver to fasten the new pull handle.
-
To reassemble your device, follow these instructions in reverse order.
