Makita Chain Saw EA6100PR 2017 Clutch Drum Replacement

Written By: Arthur Shi
  • Comments: 0
Makita Chain Saw EA6100PR 2017 Clutch Drum Replacement

Difficulty

Moderate

Steps

8

Time Required

10 - 30 minutes

Introduction

Follow this guide to remove and replace a worn out clutch drum for a Makita chainsaw.

Some images in this guide may show the chain brake cover removed. You do not need to remove the chain brake cover for this procedure.

Optional tools:

  • Chainsaw scrench

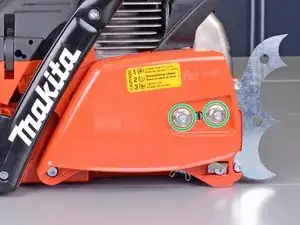

  1. RswXmitWNAYCqStW

    • Use a 13 mm socket to remove the two nuts securing the sprocket guard plate.

  2. lyw5XWYfZrCsTgJt

    • Remove the sprocket guard plate.

  3. it21jPSJ3WBYBNKr

    • If the chainsaw has a chain and guide bar installed, follow the manufacturer's instructions and remove them before proceeding.

    • During reassembly, if you are reinstalling the chain and guide bar, follow the manufacturers instructions on proper chain tensioning techniques.

  4. sXaFZMMkbDVqIsDx
    sXaFZMMkbDVqIsDx

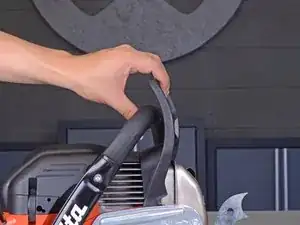

    TJgnexOILbRXolSF

    • Pull the hand guard towards the tubular handle until you hear a click to release the chain brake.

  5. QofOkSFVmLo3fRor
    QofOkSFVmLo3fRor

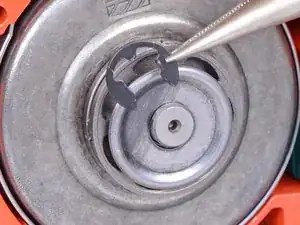

    4QOivrdjIeguSiKi

    • Use a small flathead screwdriver or snap ring pliers to pry and remove the stop ring from the axle.

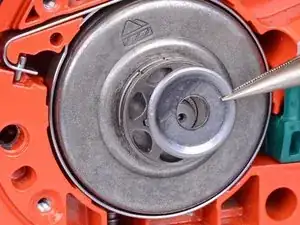

  6. b1c1eFIs5VcX44K3

    • Slide the flat washer off of the axle and remove it.

    • Re-assembly tip—be sure to re-install the washer in the correct orientation as shown in the picture.

  7. SpAqEjFuofdRBwVM

    • Slide the rim sprocket off of the axle and remove it.

    • Re-assembly tip—be sure to re-install the rim sprocket in the correct orientation as shown in the picture.

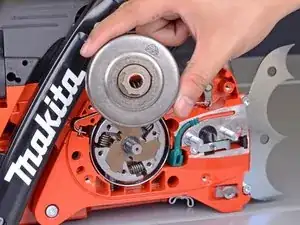

  8. VJtWAVmxFotqvQWx

    • Slide the clutch drum off of the axle and remove it.

    • During re-assembly, lubricate all moving surfaces, such as the axle.

Conclusion

To reassemble your device, follow these instructions in reverse order.
